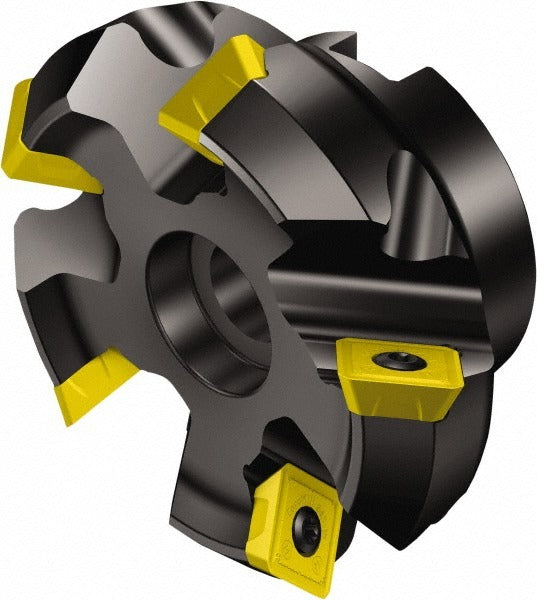

Sandvik Coromant 5740089 Square-shoulder Face Mill 4in

Product Description

The SANDVIK COROMANT 5740089 is an indexable square-shoulder face mill designed for precision milling operations in metalworking and machining environments. Built on the CoroMill 245 platform, this cutter accepts five R245-12T3 series inserts and delivers a maximum depth of cut of 0.24 inches (6.10 mm) with a 45-degree lead angle and positive rake geometry. The 4-inch maximum cutting diameter and 1-1/2-inch arbor hole diameter make it well-suited for horizontal and vertical milling machines. Installed by machinists and toolroom professionals, this face mill is a direct-fit tool for shops requiring consistent square-shoulder profiles on ferrous and non-ferrous workpieces.

The 5740089 is intended for use in production machining, job shop milling, and toolroom applications where repeatable square-shoulder cuts are required. The CoroMill 245 series is a recognized platform in face milling operations, and this cutter body is sized for mid-range spindle equipment. The right-hand cutting direction and clamp-and-screw insert holding method are standard configurations for this class of milling cutter. No specific compatible machine models or systems beyond the CoroMill 245 series designation are stated in the product data.

Key Features

• 4-inch maximum cutting diameter with 1-1/2-inch arbor hole for standard arbor mounting
• Accepts 5 R245-12T3 series indexable inserts with clamp and screw holding method
• 45-degree lead angle with positive rake geometry for efficient chip formation
• Maximum depth of cut of 0.24 inches (6.10 mm) per pass
• Overall cutter height of 50.00 mm (1.97 inches) with 16.08 mm keyway width
• Steel toolholder body, right-hand cutting direction, no coolant-through design

Compatibility

Designed for use with R245-12T3 series indexable inserts within the SANDVIK COROMANT CoroMill 245 platform. Compatible insert style designation is Cutter Style RA245. No additional machine-specific or spindle-specific compatibility data was provided in the product information.

Installation Notes

Installation should be performed by a qualified machinist following the machine tool builder's guidelines for arbor mounting and torque procedures. Ensure the spindle is fully powered down and the machine is in a locked-out, tagged-out state before mounting or removing the cutter body. Verify insert seating and clamp screw engagement before initiating any cutting operation. Keyway alignment with the arbor drive key should be confirmed prior to tightening.
