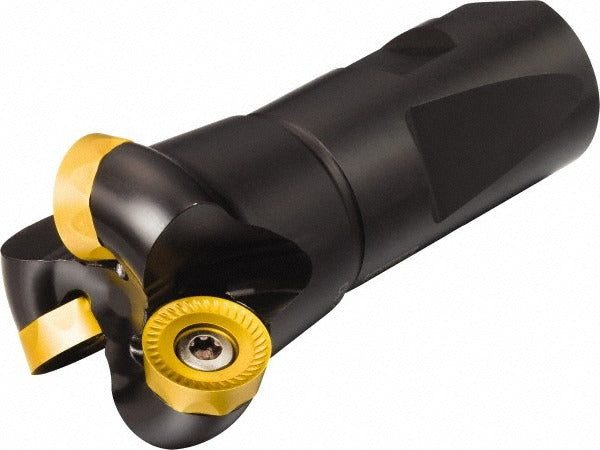

Sandvik Coromant 5739054 High-feed Face Mill 2 in

Product Description

The SANDVIK COROMANT 5739054 is an indexable high-feed face mill designed for aggressive material removal in milling operations. Part of the CoroMill 200 series, it accepts three RCKT 19 06 00 inserts and delivers a 2-inch cutting diameter with a maximum depth of cut of 0.375 inches. The right-hand cutting direction and high maximum spindle speed of 20,900 RPM make it well suited for high-feed roughing strategies on machining centers. Licensed machinists and CNC operators working in job shops, production facilities, and toolrooms are the primary users of this cutter body.

This face mill is engineered for use on vertical and horizontal machining centers where high-feed milling strategies are employed to maximize metal removal rates while keeping axial forces low. The CoroMill 200 platform accommodates the RCKT 19 06 00 round insert style, making it a practical choice for profiling, ramping, and face milling of ferrous and non-ferrous workpieces. The 31.75 mm shank diameter fits standard toolholder bores common in production milling setups.

Key Features

• 2-inch cutting diameter with a 0.375-inch maximum depth of cut for high-feed roughing passes
• Accepts three RCKT 19 06 00 indexable round inserts
• Right-hand cutting direction; compatible with standard spindle rotation on vertical and horizontal machining centers
• Maximum spindle speed of 20,900 RPM supports high-feed milling strategies
• 31.75 mm shank diameter for secure toolholder engagement
• No coolant-through design; external coolant or flood coolant application applies

Compatibility

Designed for use with RCKT 19 06 00 series inserts in the CoroMill 200 cutter platform. Fits toolholders with a 31.75 mm bore. Cutter style designation RA200..MNxx applies to this body.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and locked out before mounting or removing the cutter body. Torque insert screws and clamping hardware according to the toolholder and insert manufacturer specifications using calibrated torque tools. Verify runout with a dial indicator after mounting to confirm proper seating before beginning cuts.
