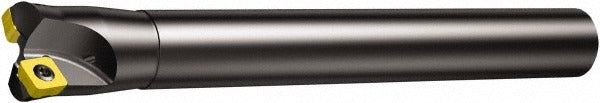

Sandvik Coromant 5738770 Indexable Chamfer End Mill

Product Description

The SANDVIK COROMANT 5738770 is an indexable chamfer end mill designed for precision chamfering and edge-breaking operations on metal workpieces. Built around the CoroMill 210 toolholder platform, it accepts three R210-090412M- style inserts secured by screw clamping. The cutting diameter measures 0.9449 inches (24.00 mm) with a maximum depth of cut of 0.0472 inches (1.20 mm) and a 10-degree lead angle. Overall length is 10.0 inches. The cylindrical shank allows straightforward mounting in compatible toolholders. Coolant-through capability supports chip evacuation and thermal management during high-feed operations. This tool is used by machinists and CNC programmers in production and job-shop environments.

This chamfer end mill is suited for indexable milling applications where consistent chamfer geometry and repeatable edge quality are required. The three-insert configuration distributes cutting load evenly, making it appropriate for medium to high-volume chamfering passes on ferrous and non-ferrous materials. The CoroMill 210 platform is common in CNC machining centers. ISO number RA210-038O32-09M may be used for cross-reference and documentation purposes. It is installed and operated by machinists and tooling specialists working with CNC vertical or horizontal machining centers.

Key Features

• 10-degree lead angle for consistent chamfer geometry
• Accepts 3 R210-090412M- inserts with screw-clamp holding method
• Coolant-through design aids chip evacuation and tool life
• Cylindrical shank for standard toolholder compatibility
• 0.9449 inches (24.00 mm) cutting diameter with 0.0472 inches (1.20 mm) max depth of cut
• 10.0 inches overall length for clearance in common machining setups

Compatibility

Designed for use with the CoroMill 210 toolholder platform. ISO cross-reference number RA210-038O32-09M. Uses R210-090412M- style inserts. Verify insert and toolholder compatibility against current SANDVIK COROMANT toolholder specifications before installation.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully powered down and at a complete stop before mounting or changing inserts. Use the appropriate Torx or hex key as specified by the insert screw requirement — do not overtighten insert screws. Confirm coolant-through passages are clear and aligned before beginning a cutting operation.
