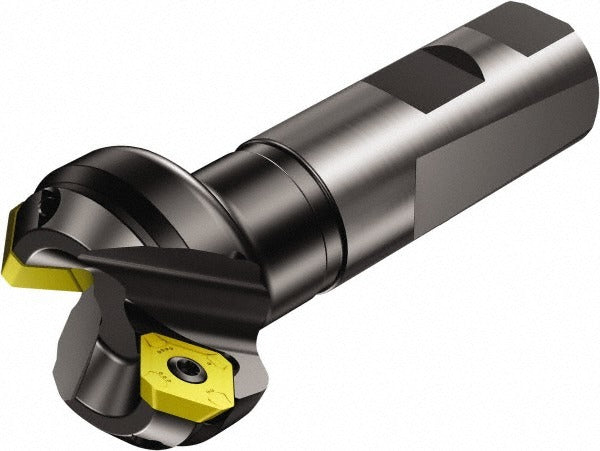

Sandvik Coromant 5738657 Square-shoulder Face Mill

Product Description

The SANDVIK COROMANT 5738657 is an indexable square-shoulder face mill designed for precision milling operations in metalworking and machining environments. Part of the CoroMill 245 series, this cutter accommodates three R245-12T3.. inserts secured by clamp and screw, delivering a maximum cutting diameter of 1.25 inches and a maximum depth of cut of 0.24 inches (6.10 mm). With a 45-degree lead angle and positive rake geometry, it is engineered for right-hand cutting direction. Machining professionals and CNC operators use this tool in milling applications requiring reliable square-shoulder performance and consistent chip evacuation.

This face mill is suited for close-pitch milling on CNC machining centers and milling machines handling ferrous and non-ferrous materials. Its 1-inch arbor hole diameter and 3.86-inch overall height make it a compact option for small-diameter face milling operations. The Cutter Style RA245 designation fits into the broader CoroMill 245 platform, which targets high-productivity shoulder milling. It is installed and used by machinists and tooling specialists working in job shops, production machining facilities, and aerospace or general metalworking environments.

Key Features

• Maximum cutting diameter of 1.25 inches with 1-inch arbor hole for standard arbor mounting
• Accepts three R245-12T3.. inserts with clamp and screw holding method
• 45-degree lead angle with positive rake for efficient chip formation
• Right-hand cutting direction, close pitch design for stable square-shoulder milling
• Steel toolholder body provides rigidity and durability under continuous milling loads
• No coolant-through configuration - suitable for flood or dry milling setups

Compatibility

Compatible with R245-12T3.. series inserts as specified by the manufacturer. This cutter is part of the CoroMill 245 series and uses the RA245 cutter style designation.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before mounting or changing the cutter body or inserts. Verify arbor fit and runout before initiating a cut, and confirm insert seating and clamp torque per the insert manufacturer guidelines. Follow applicable shop safety standards and machine tool operating procedures during setup.
