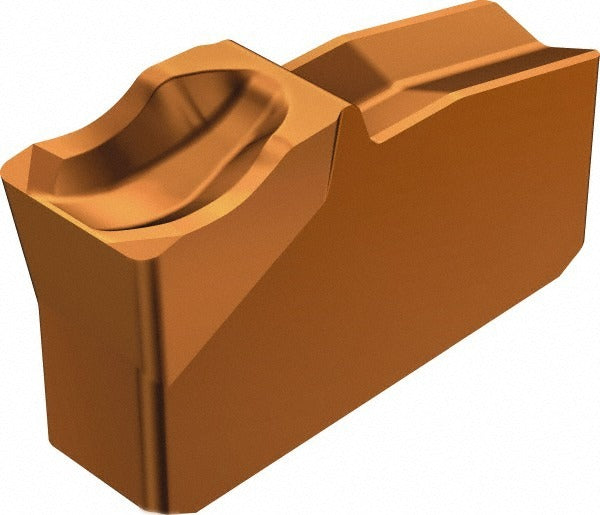

Sandvik Coromant 5738359 Cutoff Insert 5mm T-max Q-cut

Product Description

The SANDVIK COROMANT 5738359 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. Manufactured under the T-Max Q-Cut series, this insert features a 5.00 mm cutting width, a neutral lead angle, and a PVD-applied TiAlN plus AlCr2O3 coating for extended tool life under demanding cutting conditions. The insert style is N151.2 with a 4E chipbreaker geometry and a 0.40 mm corner radius. It is installed by machinists and CNC operators using a clamp-style insert holding method, making seating and replacement straightforward during production runs.

This insert is suited for precision cutoff and groove-turning applications in both production and job-shop environments. The neutral hand orientation and zero-degree lead angle make it appropriate for straight parting operations on a range of workpiece materials. The 1145 manufacturer grade combined with the PVD TiAlN plus AlCr2O3 coating provides thermal resistance and wear protection. Insert seat size is 50, corresponding to standard T-Max Q-Cut toolholders in the N151.2 system. This product is sold individually but requires a minimum order quantity of 10 units per purchase.

Key Features

• Solid carbide construction with PVD-applied TiAlN plus AlCr2O3 coating for heat and wear resistance
• 5.00 mm cutting width with a neutral lead angle for straight parting cuts
• 4E chipbreaker geometry for controlled chip formation during cutoff operations
• 0.40 mm corner radius for improved edge stability at the parting groove
• Clamp-style holding method for secure insert seating in T-Max Q-Cut toolholders
• 7-degree relief angle reducing flank wear during extended cutting cycles

Compatibility

Designed for use with SANDVIK COROMANT T-Max Q-Cut series toolholders that accept the N151.2 insert style with an insert seat size of 50. Refer to the SANDVIK COROMANT toolholder catalog for specific holder compatibility before ordering.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before changing inserts. Use the appropriate torque wrench and SANDVIK COROMANT clamping hardware specified for T-Max Q-Cut toolholders — do not substitute fasteners. Inspect the insert seat for debris or damage before seating the new insert to ensure proper clamping force and runout.
