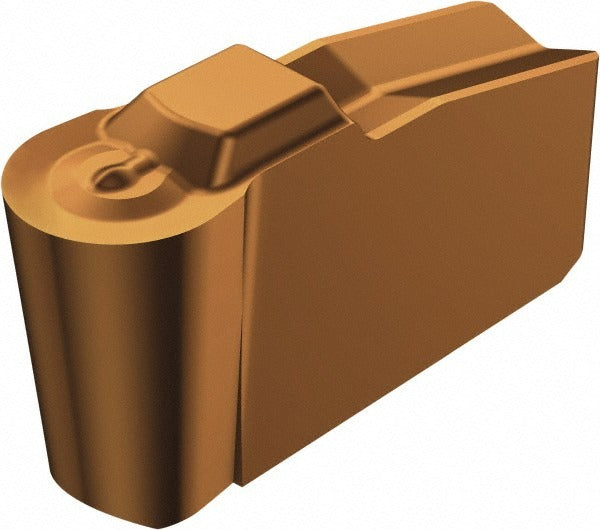

Sandvik Coromant 5737819 Grooving Insert Carbide Tialn

Product Description

The SANDVIK COROMANT 5737819 is a solid carbide grooving insert designed for precise external grooving and parting operations on CNC lathes and turning centers. Part of the T-Max Q-Cut series, this insert features a TiAlN coating applied via PVD process, delivering improved wear resistance and heat resistance during high-speed cutting. The neutral hand orientation makes it suitable for straight-in grooving applications. With a maximum depth of cut of 0.1417 inches and a corner radius of 0.1575 inches, this insert is engineered for consistent, repeatable results in production turning environments. It is used by machinists and CNC operators across general metalworking and precision manufacturing.

This insert is appropriate for use in light to medium grooving and cutoff operations on turned components in both job shop and high-volume production settings. The N151.2-4P60 insert style and Manufacturer Grade 1125 substrate are suited for a range of workpiece materials including steel and similar alloys. The T-Max Q-Cut series is a well-established platform for grooving tool systems requiring secure, repeatable insert seating. This item is sold individually but carries a minimum order quantity of 10 units, making it appropriate for stocking in tooling cribs or on-machine carousel setups.

Key Features

• Solid carbide construction with PVD-applied TiAlN coating for extended tool life
• Maximum depth of cut: 0.1417 inches (3.60 mm)
• Corner radius: 0.1575 inches (4.00 mm)
• Neutral hand orientation for straight grooving applications
• Insert style N151.2-4P60, Manufacturer Grade 1125
• Part of the T-Max Q-Cut series with a 7-degree rake angle

Compatibility

Designed for use with compatible SANDVIK COROMANT T-Max Q-Cut grooving toolholders and blade systems that accept the N151.2-4P insert style in insert size 60.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine powered off and spindle locked before insert change. Use the correct torque wrench or insert key specified for the T-Max Q-Cut holder to avoid damaging the insert seat or clamping mechanism. Inspect the insert pocket for debris or wear before seating a new insert. Always verify depth-of-cut settings against the 0.1417-inch maximum before initiating a cut cycle.
