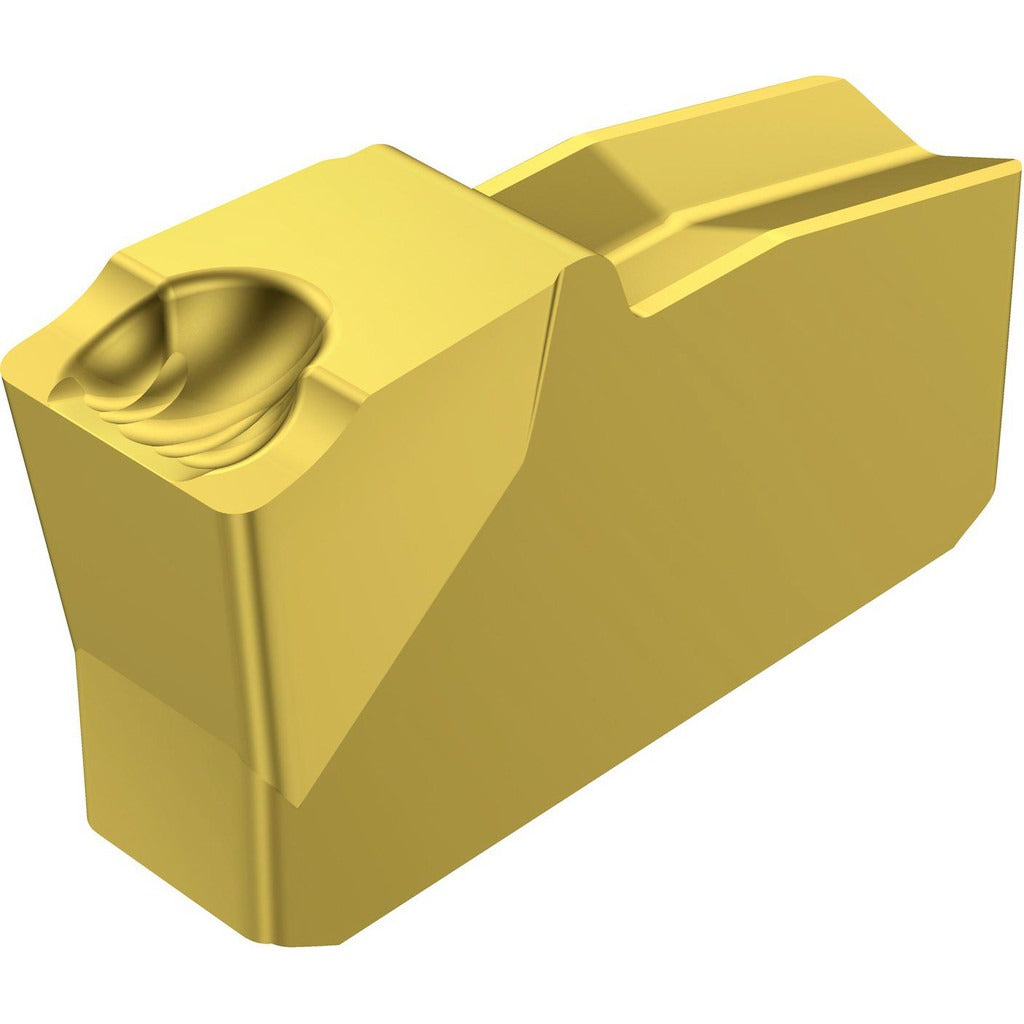

Sandvik Coromant 5737514 Grooving Insert 0.125 in Carbide

Product Description

The SANDVIK COROMANT 5737514 is a solid carbide grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. Part of the T-Max Q-Cut series, this insert carries a CVD-applied TiCN/TiN coating and the 235 manufacturer grade, making it well-suited for high-wear applications requiring a hard, slick cutting surface. The insert features a neutral hand orientation and a 5G chip breaker geometry. Cutting width is 0.125 inches, with a cutting height of 0.2672 inches. Overall length is 0.215 inches. Corner radius is 0.010 inches nominal, with a tolerance range of 0.006 to 0.014 inches. ISO code is N151.2-A125-30-5G 235.

This insert is used in metal turning and grooving applications where consistent chip control and tight dimensional tolerances are required. The neutral rake angle of 7 degrees and the 5G chip breaker geometry are appropriate for general-purpose grooving on a range of ferrous and non-ferrous materials. It is typically installed by machinists and CNC operators on production turning equipment. Insert seat size is 30. Multi-use tool compatibility is noted by the manufacturer.

Key Features

• Solid carbide substrate with CVD-applied TiCN/TiN coating for wear resistance
• 0.125 inch cutting width for precise groove sizing
• 5G chip breaker geometry supports controlled chip evacuation
• Neutral hand orientation for flexible setup on standard grooving toolholders
• Corner radius of 0.010 inches nominal (range 0.006 to 0.014 inches)
• ISO designation N151.2-A125-30-5G 235 for cross-reference and toolholder matching

Compatibility

Designed for use with T-Max Q-Cut series toolholders compatible with insert seat size 30 and the N151.2 insert style. Verify toolholder seat geometry and clamping system before installation. No additional specific model compatibility data was provided in the product input.

Installation Notes

Insert replacement should be performed by a qualified machinist with the machine fully powered down and the spindle locked. Use the appropriate torque wrench and insert seating tools specified by the toolholder manufacturer to avoid cracking the carbide substrate. Inspect the insert seat for wear or debris before seating the new insert. Do not exceed the cutting parameters specified in the toolholder documentation for this insert grade and geometry.
