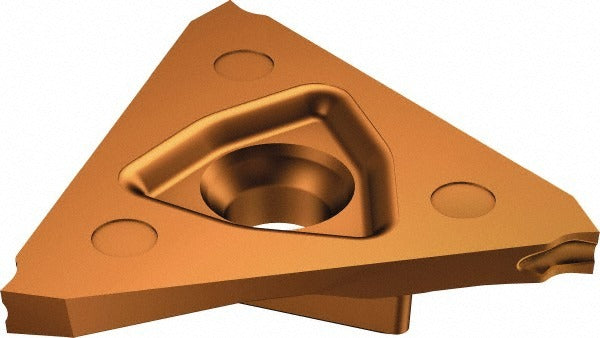

Sandvik Coromant 5737093 Cutoff Insert 2mm Carbide

Product Description

The SANDVIK COROMANT 5737093 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. Manufactured under the CoroCut 3 series, this insert features a 2.00 mm cutting width (0.0787 inches) and a neutral lead angle with a 7-degree relief angle. The PVD-applied TiAlN coating improves wear resistance and tool life in demanding turning applications. Licensed machinists and turning specialists install this insert into compatible CoroCut 3 toolholders using a clamp-style holding method. The CM chipbreaker geometry promotes controlled chip formation during cutoff operations on a range of workpiece materials.

This insert is suited for parting, grooving, and cutoff applications in production turning environments, including both manual and CNC-controlled lathes. The neutral hand orientation makes it adaptable to standard radial cutoff setups. With a maximum depth of cut of 6.40 mm (0.2520 inches) and a 0.10 mm corner radius, it is appropriate for light to medium stock removal in repetitive cutoff cycles. Typical users include production machinists and CNC turning specialists working in job shop and manufacturing facility settings.

Key Features

• Solid carbide construction with PVD TiAlN coating for extended wear resistance
• 2.00 mm cutting width (0.0787 inches) for precision parting operations
• CM chipbreaker geometry for controlled chip evacuation
• Neutral lead angle and neutral hand for standard radial cutoff setups
• Maximum depth of cut: 6.40 mm (0.2520 inches)
• Clamp-style insert holding for secure seating in CoroCut 3 toolholders

Compatibility

Designed for use with CoroCut 3 series toolholders that accept insert style N123T3 with seat size T. Verify toolholder insert seat designation before installation.

Installation Notes

Installation is performed by qualified machinists or CNC turning technicians. Power down and lock out the machine before seating or replacing inserts. Use the appropriate torque wrench or clamp screw tool specified for the CoroCut 3 toolholder to secure the insert without over-tightening the clamp. Inspect the insert seat for chips or debris before seating a new insert to ensure full contact and proper geometry alignment.
