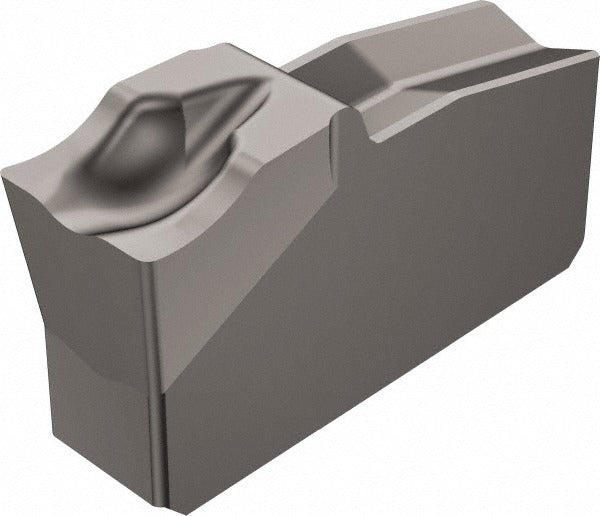

Sandvik Coromant 5736764 Cutoff Insert Solid Carbide 2.5mm

Product Description

The SANDVIK COROMANT 5736764 is a solid carbide cutoff insert in the T-Max Q-Cut series, designed for parting and grooving operations on CNC lathes and turning centers. The insert carries style designation N151.2 and grade H13A, an uncoated carbide grade suited for stable, precise parting cuts. At 2.5 mm cutting width with a neutral lead angle and a 7-degree relief angle, it delivers controlled chip evacuation and consistent cut geometry on a wide range of workpiece materials. Machining professionals and tool crib technicians install these inserts as direct replacements during scheduled tooling changes or when re-establishing cut-width accuracy.

This insert is applied in parting and grooving applications where tight width tolerances are required. The 5E chipbreaker geometry supports efficient chip forming during cutoff operations on bar stock, tubular workpieces, and turned components. The clamp-style holding method provides secure seating in compatible T-Max Q-Cut toolholders. It is suited for production turning environments in job shops, automotive machining cells, and general metalworking facilities running repetitive cutoff cycles.

Key Features

• Solid carbide construction, H13A grade, uncoated bright finish for stable cutting performance
• 2.5 mm cutting width with neutral lead angle and neutral hand orientation
• 7-degree relief angle for reduced rubbing and improved clearance at the cut face
• 0.20 mm corner radius for controlled edge geometry at the parting groove wall
• 5E chipbreaker for effective chip control during parting operations
• Clamp-style insert holding for positive seating in T-Max Q-Cut toolholders

Compatibility

Designed for use with T-Max Q-Cut series toolholders accepting insert size code 25 and style N151.2. Verify toolholder seat size and insert pocket configuration before installation.

Installation Notes

Installation is performed by machining technicians during tooling changes on CNC turning equipment. Power down and lock out the machine before accessing the turret or toolholder. Use the correct clamping key or torque wrench per the toolholder manufacturer's instructions to seat the insert without overtightening. Inspect the insert seat for chips or debris before seating a new insert to ensure full contact and accurate positioning.
