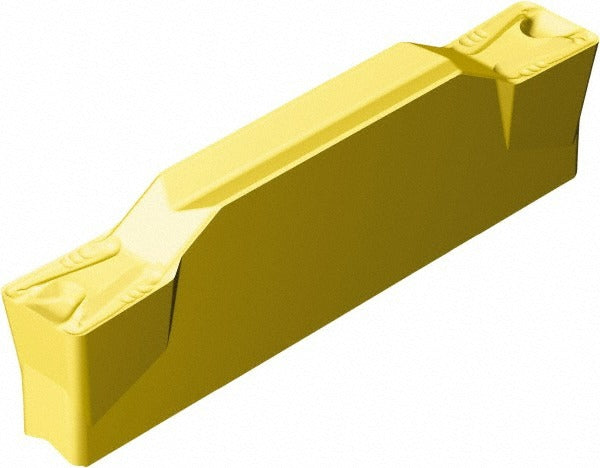

Sandvik Coromant 5736693 Grooving Insert 8mm Corocut 1-2

Product Description

The SANDVIK COROMANT 5736693 is a solid carbide grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. It carries a TiCN/Al2O3/TiN multilayer coating applied via MT-CVD, delivering wear resistance and thermal stability across a range of workpiece materials. The insert delivers an 8.00 mm cutting width and a maximum depth of cut of 27.60 mm, making it well suited for medium to deep grooving passes. With a neutral hand orientation and a 7-degree rake angle, it fits standard CoroCut 1-2 toolholders without modification. Machinists and CNC operators in production shops install this insert for grooving, parting, and face grooving applications.

This insert fits into the SANDVIK COROMANT CoroCut 1-2 system, which is widely used in both job shop and high-volume production turning environments. The L insert seat size and the ISO code N123L2-0800-0012-TM 2135 identify the exact holder pocket required. It is applicable to grooving operations on ferrous and non-ferrous materials where the TM chip breaker geometry assists in chip control at moderate feed rates. The manufacturer grade 2135 positions this insert for general-purpose to semi-finishing grooving on steel, stainless, and similar materials.

Key Features

• 8.00 mm cutting width with a maximum depth of cut of 27.60 mm for medium to deep grooving
• MT-CVD TiCN/Al2O3/TiN multilayer coating for extended tool life and heat resistance
• Solid carbide substrate under manufacturer grade 2135 for consistent edge integrity
• TM chip breaker geometry designed to manage chip flow in grooving and parting operations
• Neutral hand orientation compatible with standard CoroCut 1-2 L-seat toolholders
• 1.20 mm corner radius balances edge strength with surface finish requirements

Compatibility

Designed for use in SANDVIK COROMANT CoroCut 1-2 series toolholders requiring an L insert seat size, as identified by ISO code N123L2-0800-0012-TM 2135.

Installation Notes

This insert is installed and replaced by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before changing inserts. Seat the insert fully in the pocket and confirm clamping torque per the toolholder manufacturer specification before resuming cuts. Do not exceed the maximum depth of cut rating for the insert or the toolholder.
