Sandvik Coromant 5736554 Grooving Insert Tialn 4mm Corocut

Product Description

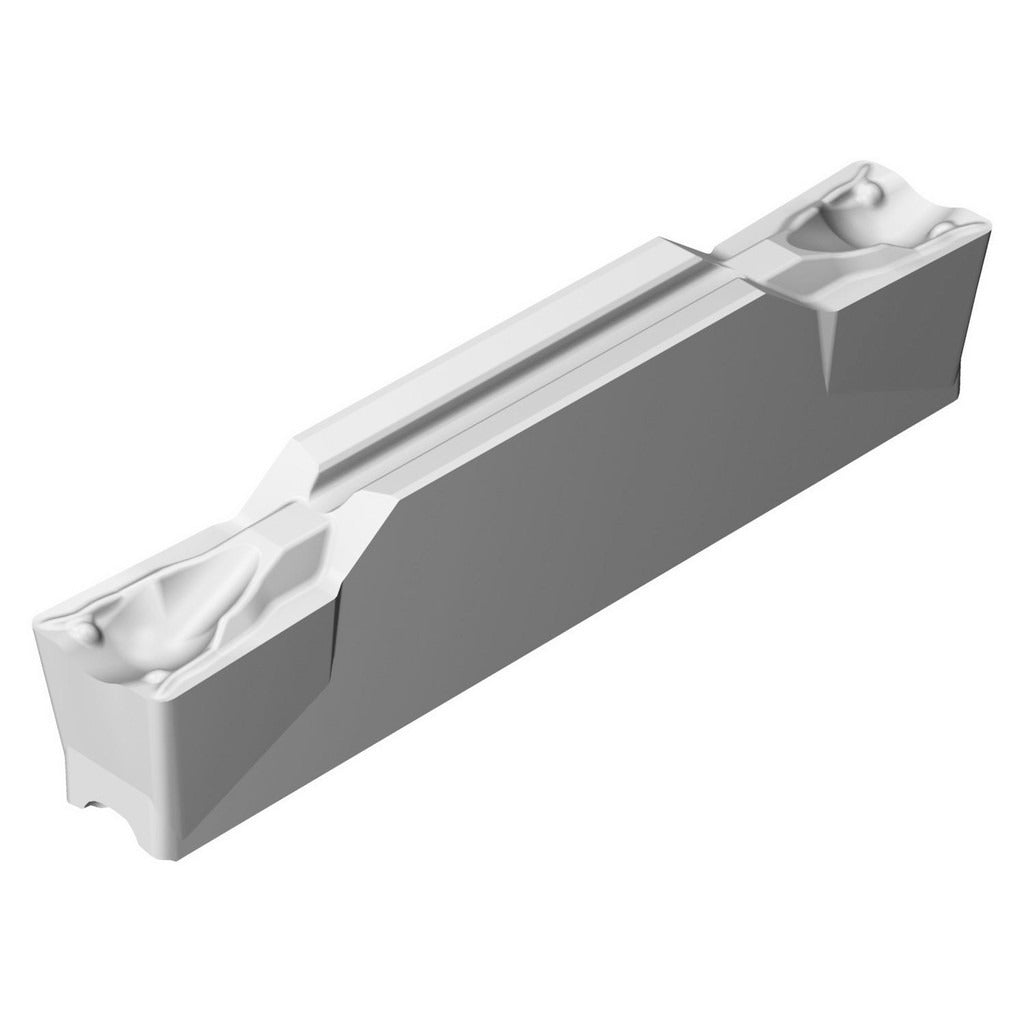

The SANDVIK COROMANT 5736554 is a solid carbide grooving insert designed for the CoroCut 1-2 system, a widely used platform for parting and grooving operations on CNC lathes and turning centers. This insert carries a TiAlN coating applied via PVD process, providing wear resistance and thermal stability during interrupted cuts and continuous grooving passes. It features a 4.00 mm cutting width, a maximum depth of cut of 23.30 mm, and a positive rake geometry with a TF chip breaker. The ISO code is N123H2-0400-0004-TF 1105. Machinists and CNC operators working with steel, stainless, and similar materials install this insert as a direct replacement in compatible CoroCut 1-2 toolholders.

This insert is suited for grooving, parting, and profiling operations on both external and internal diameters in production turning environments. The neutral hand orientation makes it usable in standard straight-plunge setups. The TF chip breaker geometry is optimized for medium-feed grooving where chip control is critical. The manufacturer grade 1105 is a PVD-coated carbide grade intended for applications requiring a balance of toughness and wear resistance. This insert is sold individually with a minimum order quantity of 10 units.

Key Features

• Solid carbide substrate with PVD TiAlN coating for enhanced wear resistance
• 4.00 mm cutting width with a maximum depth of cut of 23.30 mm
• TF chip breaker geometry optimized for controlled chip formation in grooving operations
• Positive rake angle reduces cutting forces and heat generation
• 0.40 mm corner radius for accurate groove geometry
• Neutral hand orientation supports straight-plunge grooving setups

Compatibility

Designed as a direct replacement insert for SANDVIK COROMANT CoroCut 1-2 series toolholders accepting H2 insert seat size. ISO code N123H2-0400-0004-TF 1105 identifies compatible holders and clamping units within the CoroCut 1-2 platform.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or removing inserts. Use the appropriate torx or hex key torque wrench as specified by the toolholder manufacturer for the clamping screw — do not over-tighten. Inspect the insert seat and clamping surfaces for chips or debris before seating the new insert.
