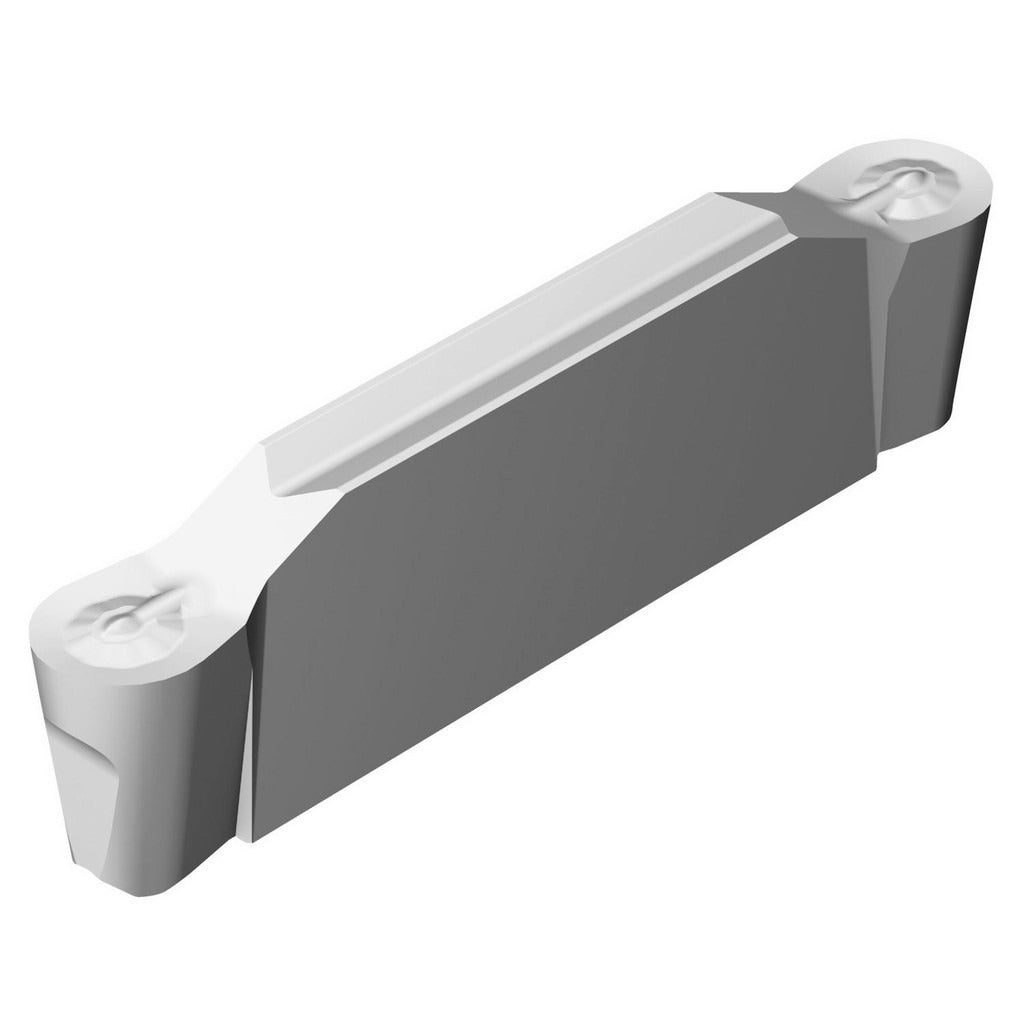

Sandvik Coromant 5736525 Grooving Insert Corocut 1-2

Product Description

The SANDVIK COROMANT 5736525 is a solid carbide grooving insert designed for use in CoroCut 1-2 toolholders. It features a TiAlN coating applied via a PVD process, delivering wear resistance in demanding turning and grooving operations. The insert has a 5 mm cutting width and a maximum depth of cut of 22.8 mm, making it well suited for medium to deep grooving passes. The neutral hand orientation and positive rake geometry support stable chip formation and consistent surface finish. Installation is performed by qualified machinists and CNC operators working on lathes and turning centers.

This insert is intended for external and internal grooving applications on CNC lathes and turning centers in production machining environments, including both job shop and high-volume manufacturing settings. The RO chip breaker style promotes reliable chip control across a range of workpiece materials. The H2 insert size and H seat designation match the corresponding CoroCut 1-2 toolholder pocket specifications. The insert is cataloged under ISO code N123H2-0500-RO 1105 and is sold individually with a minimum order quantity of 10 units.

Key Features

• Solid carbide substrate with TiAlN PVD coating for wear and heat resistance
• 5 mm cutting width with a 22.8 mm maximum depth of cut
• 2.5 mm corner radius provides edge strength during grooving
• Positive rake geometry supports stable, low-force cutting action
• RO chip breaker for controlled chip evacuation
• Neutral hand orientation compatible with both left- and right-hand setups where toolholder design permits

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series toolholders requiring an H2 insert seat size. ISO code N123H2-0500-RO 1105 and catalog number N123H2-0500-RO 1105 can be used to confirm correct toolholder and pocket match.

Installation Notes

Installation of this grooving insert should be performed by a qualified machinist or CNC operator with the machine in a full stop, locked-out, and de-energized state before any insert change. Use the appropriate Torx or hex key specified by the toolholder manufacturer when seating and torquing the clamping screw. Inspect the insert seat and clamping components for wear or debris before installing the new insert. Confirm the insert is fully seated and the clamp is secure before resuming machine operation.
