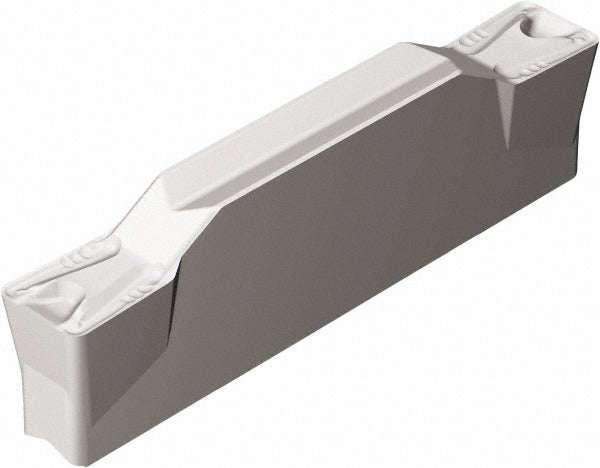

Sandvik Coromant 5736507 Grooving Insert H13A Corocut 1-2

Product Description

The SANDVIK COROMANT 5736507 is a solid carbide grooving insert designed for use in CoroCut 1-2 series toolholders. It carries the ISO designation N123K2-0600-0008-TM H13A and is supplied in an uncoated, bright finish under the H13A manufacturer grade. The insert features a neutral hand orientation with a 6.00 mm cutting width, a maximum depth of cut of 23.00 mm, and a TM chip breaker geometry. A corner radius of 0.80 mm and a positive rake angle contribute to controlled chip formation during grooving and parting operations. This insert is sized K2 with a K insert seat, making it a direct fit for compatible CoroCut 1-2 bodies. Machinists and CNC tooling technicians install this insert in turning centers and lathes for precision grooving work.

The 5736507 insert is suited for grooving, parting, and face grooving operations on turning centers handling a range of workpiece materials. Its uncoated solid carbide construction is appropriate for applications where coating is not required or where a sharp edge is critical to surface finish. The insert fits CoroCut 1-2 series toolholders and is applicable across general turning operations in both production and job shop environments. The TM chip breaker geometry supports chip control across a range of feed rates and depths within the specified cutting parameters. This insert is sold individually, with a minimum order quantity of 10 units.

Key Features

• Solid carbide construction with uncoated bright finish under grade H13A
• 6.00 mm cutting width with a maximum depth of cut of 23.00 mm
• TM chip breaker geometry for controlled chip formation
• Positive rake angle and 0.80 mm corner radius for precise edge engagement
• Neutral hand orientation — compatible with standard CoroCut 1-2 toolholders
• Multi-use insert rated for grooving, parting, and face grooving applications

Compatibility

Designed for use in SANDVIK COROMANT CoroCut 1-2 series toolholders accepting a K insert seat size. ISO code N123K2-0600-0008-TM H13A identifies the exact toolholder pocket and clamping interface required.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before seating or removing the insert. Use the correct torque driver for the clamping screw as specified by the toolholder manufacturer — do not over-tighten or substitute fasteners. Confirm insert seating and orientation before resuming cuts, and verify that the toolholder pocket is clean and free of chips or debris prior to installation.
