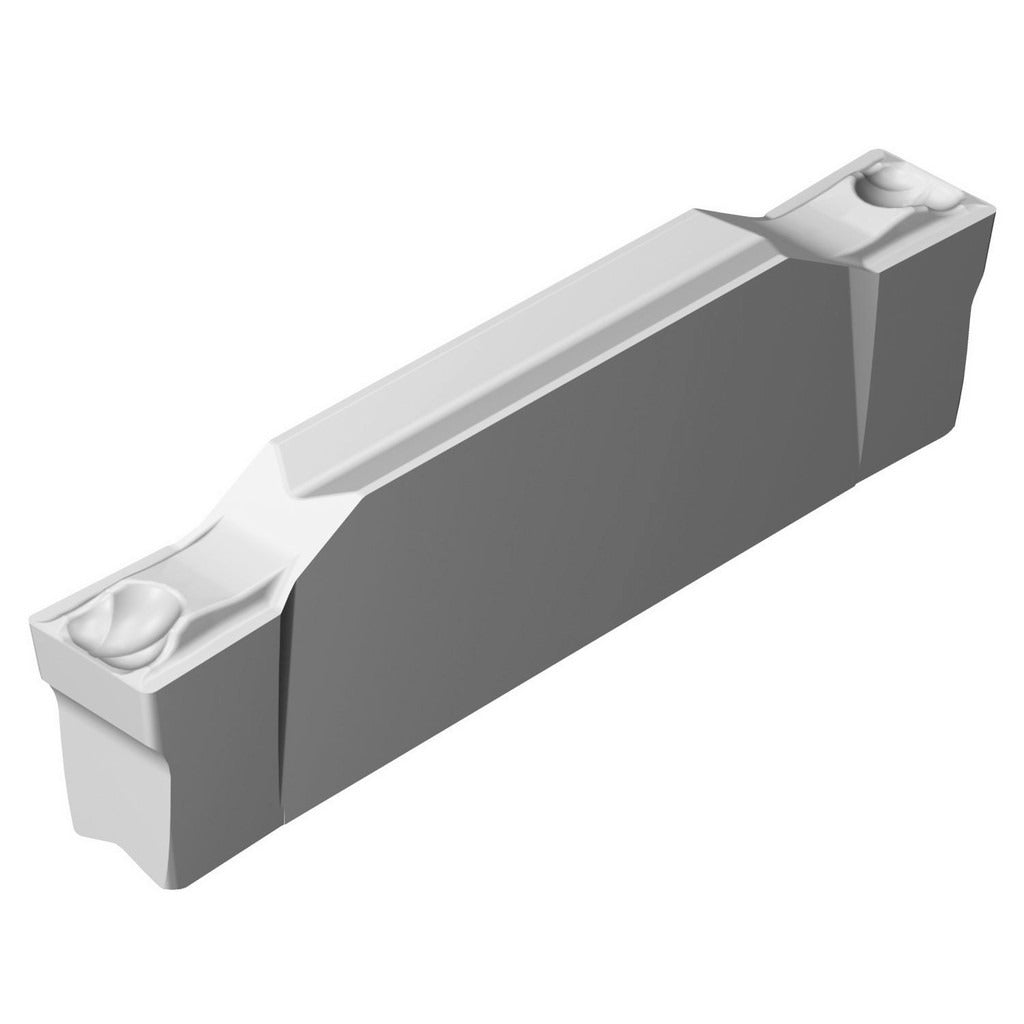

Sandvik Coromant 5736414 Grooving Insert Solid Carbide

Product Description

The SANDVIK COROMANT 5736414 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. It carries the N123H2GF 1105 designation, placing it in the CoroCut 1-2 series with a GF chip breaker geometry optimized for controlled chip formation. The insert features a TiAlN2 PVD coating for wear resistance in demanding cutting conditions. With a cutting width of 0.1559 inches (3.96 mm) and a maximum depth of cut of 0.9606 inches (24.4 mm), it handles a broad range of groove depths in a single holder. Machinists and CNC operators in production and job-shop environments install this insert for reliable, repeatable grooving performance.

This insert is suited for neutral-hand external grooving applications on turning centers where controlled chip evacuation and consistent groove width are required. The CoroCut 1-2 series is widely applied in both high-volume production and short-run turning scenarios. The GF chip breaker geometry is typically used when machining materials that require positive rake cutting action, making this insert a fit for a variety of workpiece materials where clean groove walls and predictable tool life are priorities. It is sold individually with a minimum order quantity of 10 units.

Key Features

• Solid carbide substrate with TiAlN2 PVD coating for elevated wear resistance
• GF chip breaker geometry for controlled chip formation during grooving
• 3.96 mm (0.1559 inches) cutting width for precise groove sizing
• Maximum depth of cut of 24.4 mm (0.9606 inches) covering a wide range of groove depths
• Neutral hand orientation for flexible toolholder compatibility
• 7-degree rake angle with 0.20 mm corner radius for clean entry and exit

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series toolholders accepting H2 insert seat size. ISO code N123H203960002GF1105 identifies the exact insert geometry for holder and catalog matching.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician with the machine powered down and the spindle locked before insert indexing or replacement. Use the correct torque wrench and clamping screw specified for the CoroCut 1-2 toolholder to secure the insert without over-torquing the clamping mechanism. Inspect the insert pocket and clamping surfaces for chips or debris before seating the insert. Always verify cutting parameters against the applicable grade and geometry recommendations before resuming operation.
