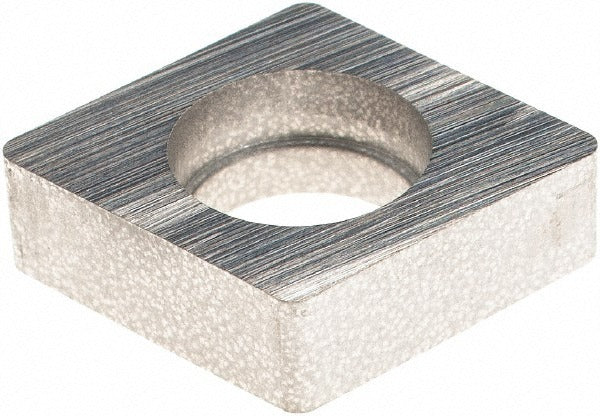

Sandvik Coromant 5736347 Mcn Toolholder Shim

Product Description

The SANDVIK COROMANT 5736347 is an MCN-style shim designed for use with indexable toolholders in metal cutting applications. Shims of this type provide precise seating and height adjustment for indexable inserts, ensuring consistent cutting geometry and reducing the risk of premature insert wear or chatter. This shim measures 3.74 inches in length, 1.54 inches in width, and 0.43 inches in height, and weighs approximately 0.25 pounds. It is sold individually and is a direct OEM-style replacement component intended for installation by machinists and toolroom technicians working with SANDVIK COROMANT indexable tooling systems.

This shim is suited for use in precision machining environments including CNC turning centers, boring bars, and other toolholder assemblies that accept MCN-style shim configurations. It is typically installed during toolholder setup or when replacing a worn or damaged shim seat to restore proper insert positioning. The MCN catalog designation MCN 432 identifies the specific geometry and fit for compatible toolholder bodies.

Key Features

• MCN shim style compatible with indexable toolholder assemblies
• Catalog number MCN 432 for precise identification and ordering
• Compact form factor: 3.74 inches long, 1.54 inches wide, 0.43 inches high
• Lightweight at 0.25 pounds for easy handling during toolholder service
• Sold as a single shim per package unit
• Minimum order quantity of 10 units supports shop stock replenishment

Compatibility

Designed as an OEM-style replacement shim for SANDVIK COROMANT indexable toolholders requiring the MCN shim style, catalog number MCN 432.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine before servicing any toolholder assembly. Ensure the shim seat is clean and free of debris before seating the shim, as contamination can affect insert height and cutting geometry. Follow the toolholder manufacturer's torque and assembly guidelines when securing the insert and clamp after shim replacement.
