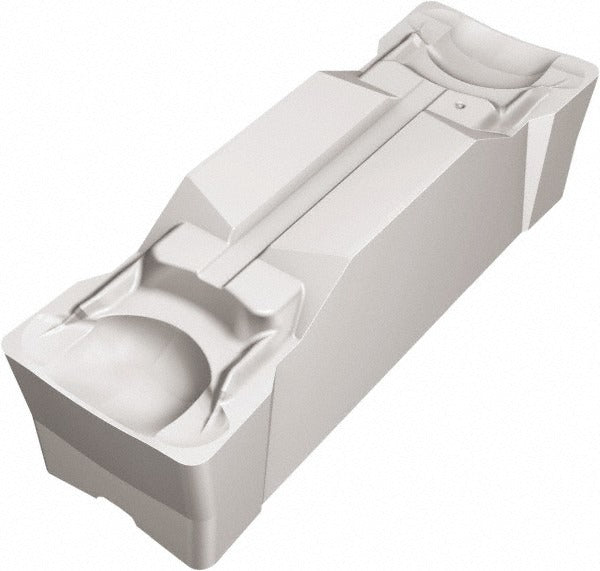

Sandvik Coromant 5736200 Grooving Insert H13A Corocut 1-2

Product Description

The SANDVIK COROMANT 5736200 is a solid carbide grooving insert designed for use in CoroCut 1-2 toolholders on CNC turning centers and lathes. Uncoated (bright finish) and configured with a neutral hand orientation, it carries the ISO designation N123H2-0400-0003-GM H13A. The cutting width measures 4.00 mm (0.1575 inches) and the maximum depth of cut reaches 23.00 mm (0.9055 inches). The GM chip breaker geometry and 7-degree rake angle promote controlled chip formation during grooving and parting operations. Machinists and CNC programmers working in precision metalcutting environments rely on this insert for consistent groove geometry and dimensional repeatability.

This insert is suited for grooving, parting, and profiling operations on workpieces processed on CNC lathes and turning centers. Its neutral hand allows installation in both right- and left-hand CoroCut 1-2 toolholders without orientation constraints. The H13A uncoated carbide grade is typically applied to non-ferrous materials, aluminum alloys, and other applications where an uncoated substrate offers adhesion resistance and sharp edge retention. The insert seat size is H, cutting height is 4.35 mm (0.1713 inches), and the corner radius is 0.30 mm (0.0118 inches).

Key Features

• Solid carbide H13A grade, uncoated bright finish for sharp edge retention on non-ferrous materials
• 4.00 mm cutting width with a maximum depth of cut of 23.00 mm
• GM chip breaker geometry with a 7-degree rake angle for controlled chip evacuation
• Neutral hand orientation compatible with both right- and left-hand CoroCut 1-2 toolholders
• Corner radius of 0.30 mm for precise groove floor geometry
• Multi-use insert rated for the 20.00 mm and above maximum depth of cut range

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series toolholders accepting insert seat size H. The ISO catalog reference is N123H2-0400-0003-GM H13A.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or removing the insert. Verify the insert pocket and clamping screw are clean and free of debris before torquing the clamp to the toolholder manufacturer specification. Confirm correct insert orientation and seating before resuming cutting operations.
