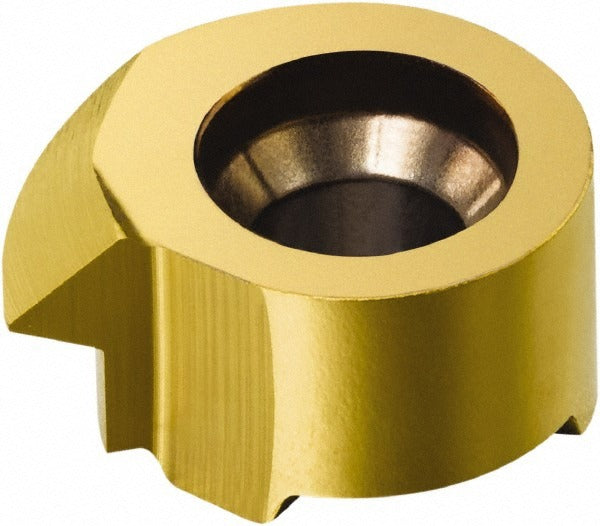

Sandvik Coromant 5736170 Threading Insert Carbide

Product Description

The SANDVIK COROMANT 5736170 is a carbide threading insert designed for internal thread-cutting operations on CNC lathes and turning centers. Part of the CoroCut MB series, this right-hand insert carries a TiAlN/TiN finish coating and is manufactured to Sandvik grade 1025. It cuts a standard 60-degree V thread form and covers an internal pitch range of 1.5 to 1.75 mm, equivalent to 15 to 17 TPI. The ISO code is MB-07TH150VM-10R 1025 and the insert size designation is 07. Machining professionals and tooling specialists install this insert in compatible CoroCut MB toolholders for precision internal threading on ferrous and non-ferrous workpieces.

This insert is suited for internal threading operations in production and job-shop environments. The 60-degree included angle and right-hand orientation make it a standard choice for metric and unified thread profiles within the 1.5 to 1.75 mm pitch range. It is typically used in CNC turning applications where consistent thread quality and insert longevity are required. The TiAlN/TiN coating supports performance in moderate to high cutting speeds across a range of workpiece materials.

Key Features

• Carbide substrate with TiAlN/TiN finish coating for extended tool life
• 60-degree V thread form for standard metric and unified internal threads
• Internal pitch range of 1.5 to 1.75 mm (15 to 17 TPI)
• Right-hand cut orientation, insert size 07
• CoroCut MB series for use with compatible Sandvik MB toolholders
• Sandvik manufacturer grade 1025 for controlled wear resistance

Compatibility

Designed for use with compatible SANDVIK COROMANT CoroCut MB series toolholders accepting size 07 threading inserts. Consult the Sandvik CoroCut MB toolholder selection guide to confirm holder compatibility before installation.

Installation Notes

Threading inserts of this type are installed and replaced by machinists or tooling technicians on CNC turning equipment. Power down and lock out the machine before changing inserts. Use the appropriate Torx or insert-clamp key specified by the toolholder manufacturer to seat the insert securely. Inspect the insert pocket and clamping components for wear or debris before installing a new insert.
