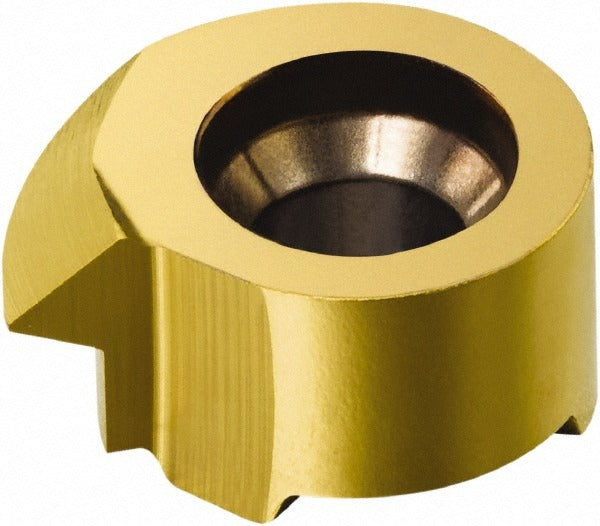

Sandvik Coromant 5736168 Carbide Threading Insert

Product Description

The SANDVIK COROMANT 5736168 is a carbide threading insert designed for internal thread cutting operations on CNC lathes and turning centers. Part of the CoroCut MB series, this left-hand insert carries a TiAlN/TiN finish coating that extends tool life in demanding thread milling applications. It covers an internal pitch range of 1.5 to 1.75 mm (15 to 17 TPI) and is ground to a 60-degree included angle conforming to the 60-degree V thread standard. The ISO code designation is MB-07TH150VM-10L 1025, and the manufacturer grade is 1025. Machinists and CNC operators working in production or job-shop environments will find this insert a direct fit for CoroCut MB toolholders.

This insert is suited for internal threading passes on ferrous and non-ferrous workpieces where precise thread form and surface finish are required. The left-hand orientation makes it the correct choice for right-to-left cutting direction setups common in specific lathe configurations. The 07 insert size fits the corresponding CoroCut MB pocket geometry. This insert is sold individually (package quantity of 1), with a minimum order quantity of 5 units.

Key Features

• Carbide substrate with TiAlN/TiN finish coating for extended tool life and heat resistance
• Left-hand insert orientation for right-to-left internal threading passes
• 60-degree included angle conforming to 60-degree V thread standard
• Internal pitch coverage: 1.5 to 1.75 mm (15 to 17 TPI)
• CoroCut MB series geometry, insert size 07
• Manufacturer grade 1025 for consistent performance across a range of workpiece materials

Compatibility

Designed for use with SANDVIK COROMANT CoroCut MB series toolholders accepting the MB-07 insert pocket. ISO code MB-07TH150VM-10L 1025 identifies the exact pocket and geometry requirements.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom technician. Always power down and lock out the machine before changing inserts. Use the appropriate Torx or hex key as specified by the toolholder manufacturer to secure the clamping screw, and inspect the insert pocket for chips or debris before seating the insert. Refer to the SANDVIK COROMANT CoroCut MB cutting data recommendations for feed rate and speed parameters appropriate to the workpiece material.
