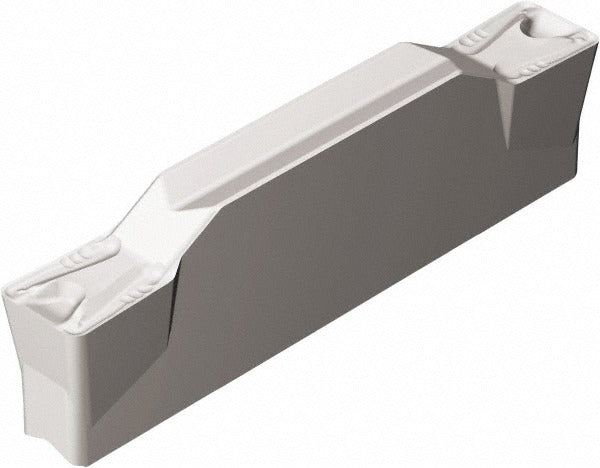

Sandvik Coromant 5736100 Grooving Insert H13A Corocut 1-2

Product Description

The SANDVIK COROMANT 5736100 is a solid carbide uncoated grooving insert designed for external grooving and parting operations on CNC turning centers and lathes. Cataloged under the CoroCut 1-2 series, this insert carries the ISO designation N123G2-0300-0004-TM H13A and features a 3.00 mm cutting width, a maximum depth of cut of 18.40 mm, and a neutral hand orientation. The H13A uncoated carbide grade is suited for non-ferrous and cast iron applications where coating buildup is undesirable. The TM chipbreaker geometry promotes controlled chip evacuation in medium-duty grooving. Machinists and CNC turning specialists install this insert as a direct replacement component in compatible CoroCut 1-2 toolholders.

This insert is appropriate for use in precision turning environments handling grooves in the 10.00 mm to 20.00 mm depth-of-cut range. Its neutral rake angle of 7 degrees and 0.40 mm corner radius make it suitable for general-purpose grooving in both production and job-shop settings. The multi-use designation indicates it can be indexed and repositioned per standard CoroCut 1-2 insert handling practices. Typical applications include external groove profiles, snap-ring grooves, and undercuts on turned components in light to medium material removal conditions.

Key Features

• Solid carbide H13A uncoated grade — suited for non-ferrous and cast iron grooving without coating adhesion concerns
• 3.00 mm cutting width with a maximum depth of cut of 18.40 mm
• TM chipbreaker geometry for controlled chip flow in medium-duty grooving
• Neutral hand orientation for flexible mounting in standard CoroCut 1-2 toolholders
• 0.40 mm corner radius for accurate groove profile definition
• Multi-use insert — indexable per CoroCut 1-2 handling procedures

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series toolholders accepting size G inserts. ISO code N123G2-0300-0004-TM H13A identifies the exact seat and geometry requirement. Verify toolholder insert seat size G compatibility before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Always power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque wrench and clamping screw specified by SANDVIK COROMANT for CoroCut 1-2 toolholders — do not use substitute fasteners. Inspect the insert pocket and clamping surfaces for debris or wear before seating the new insert.
