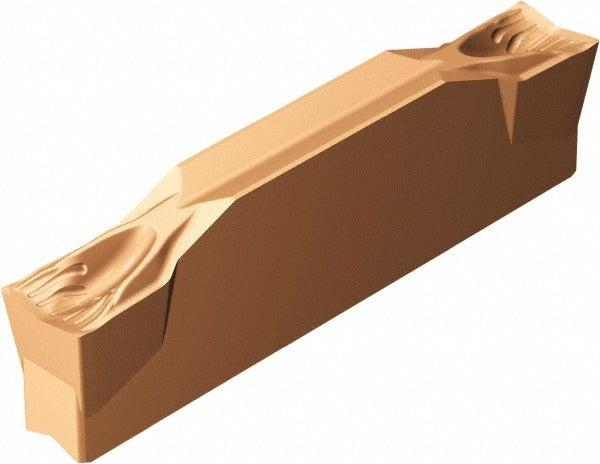

Sandvik Coromant 5736000 Cutoff Insert 3mm Corocut 1-2

Product Description

The SANDVIK COROMANT 5736000 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. It belongs to the CoroCut 1-2 series and is engineered for precision cutoff work where consistent chip control and tool life are critical. The insert features a 3.00 mm cutting width (0.1181 inches), a TiAlN PVD coating for heat and wear resistance, and the CF chipbreaker geometry for reliable chip evacuation. A neutral hand and neutral lead angle allow flexible application in standard radial cutoff setups. This insert is installed by machinists and CNC turning professionals in production and job-shop environments.

This insert is suited for external grooving and parting-off applications on bar stock, turned components, and cylindrical workpieces. The CoroCut 1-2 series is a clamped insert system commonly used across light to medium turning operations. The CF chipbreaker geometry is optimized for finishing to medium chip loads. Maximum depth of cut reaches 18.40 mm (0.7244 inches), making it capable of parting moderate-diameter workpieces. The G seat size and insert style N123x2 define the correct tool holder compatibility for this insert.

Key Features

• Solid carbide construction with TiAlN PVD coating for extended wear resistance
• 3.00 mm cutting width (0.1181 inches) for precise parting and grooving
• CF chipbreaker geometry promotes controlled chip formation during cutoff
• Neutral hand and 0-degree lead angle for standard radial cutoff setups
• Maximum depth of cut: 18.40 mm (0.7244 inches)
• 7-degree relief angle with 0.10 mm corner radius for clean edge geometry

Compatibility

Designed for use with CoroCut 1-2 series tool holders accepting insert seat size G and insert style N123x2. Refer to the manufacturer catalog number N123G2-0300-0001-CF 1125 to confirm tool holder and shim compatibility before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC technician. Ensure the machine spindle is fully stopped and the turret is in a safe index position before changing inserts. Clamp the insert securely according to the tool holder manufacturer torque guidance to prevent insert movement during the cut. Do not exceed the rated maximum depth of cut for this insert geometry, and verify feed rate and cutting speed against the grade 1125 recommendations for the workpiece material being machined.
