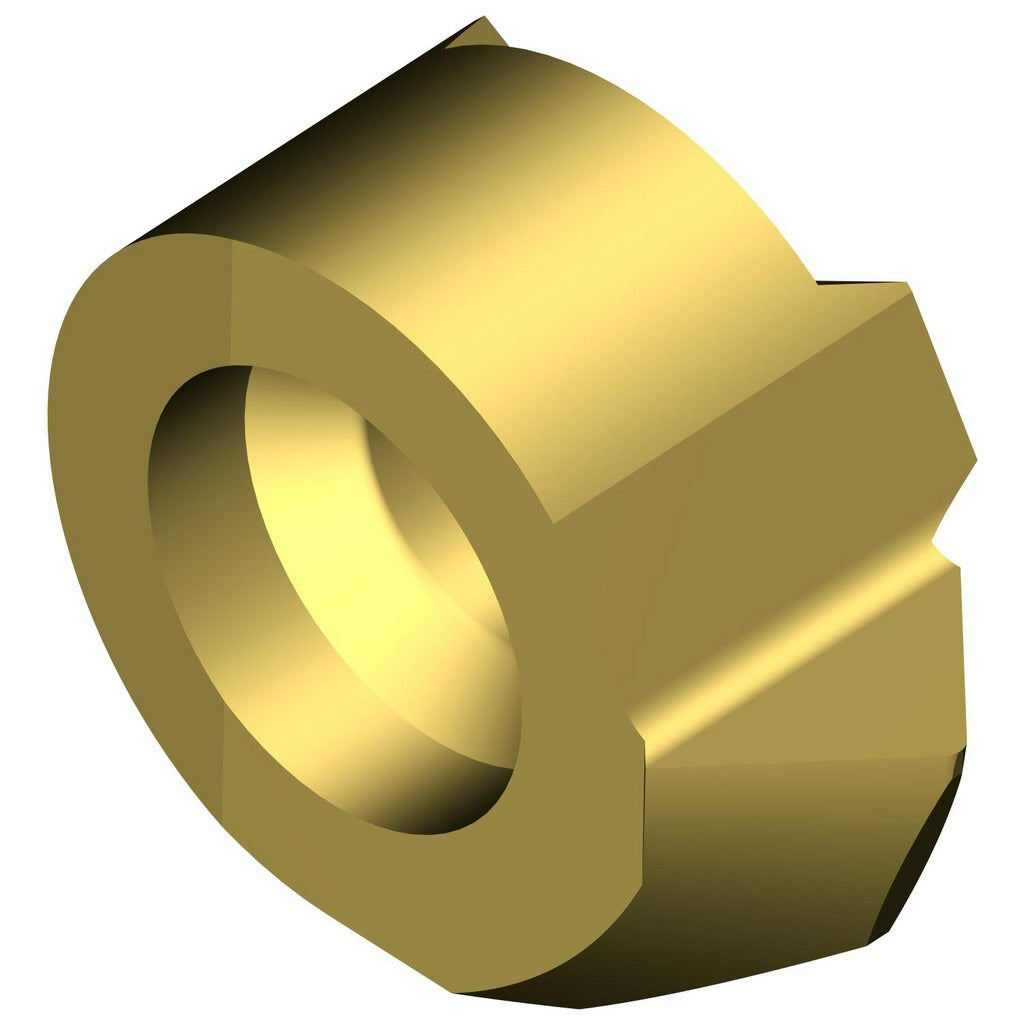

Sandvik Coromant 5735957 Profiling Insert Corocut Mb

Product Description

The SANDVIK COROMANT 5735957 is a solid carbide profiling and turning insert in the CoroCut MB series, designed for precision external profiling and turning operations on CNC lathes and turning centers. It carries a 0.0079 inch (0.20 mm) corner radius and is manufactured to ISO code MB-07T045-02-10R 1025. The insert features a PVD-applied TiAlN and TiN coating over a carbide substrate graded 1025, a classification suited for steel, stainless steel, superalloys, titanium, and non-ferrous metals. Clamp-held and right-hand oriented, it delivers a maximum depth of cut of 0.0591 inches with a positive rake angle and a 2-degree relief angle for controlled chip formation.

This insert is applied in profiling and turning operations where tight corner geometry and coating durability are critical. It fits CNC turning centers running P, M, S, and N workpiece material classifications. The CoroCut MB system is commonly used in precision component shops producing aerospace, medical, and general engineering parts where repeatable edge geometry and surface finish consistency are required. The insert is sold individually with a minimum order quantity of 5 units.

Key Features

• PVD coating process with TiAlN and TiN layers for wear resistance across multiple material groups
• 0.0079 inch (0.20 mm) corner radius for profiling accuracy
• Maximum depth of cut: 0.0591 inches
• Clamp-held, right-hand insert with positive rake and 2-degree relief angle
• Single cutting edge with rectangular shape and 360-degree included angle
• Compatible with P, M, S, and N primary workpiece material codes

Compatibility

Designed for use in SANDVIK COROMANT CoroCut MB toolholders accepting MB..T04507 insert style. ISO designation MB-07T045-02-10R 1025 governs fitment. No additional compatible model numbers were specified in the product data.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or removing inserts. Use the correct clamping torque driver per the toolholder manufacturer's specification sheet — do not over-torque the clamp screw, as this can fracture the carbide substrate. Inspect the insert pocket and clamp for debris or wear before seating a new insert.
