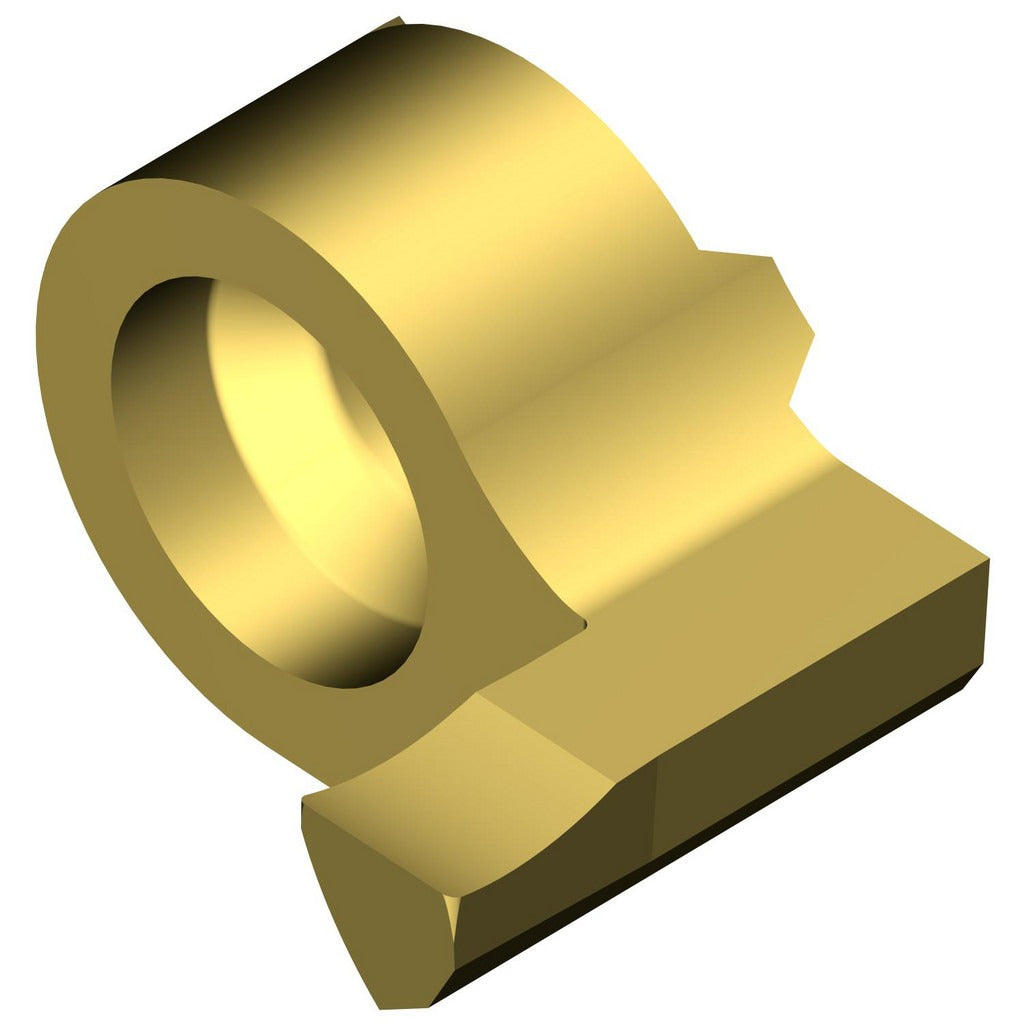

Sandvik Coromant 5735709 Grooving Insert 3mm Corocut Mb

Product Description

The SANDVIK COROMANT 5735709 is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. Part of the CoroCut MB series, this insert carries a PVD-applied TiAlN/TiN coating and is manufactured to grade 1025 for reliable performance in demanding cutting environments. The insert delivers a cutting width of 3.00 mm (0.1181 inches) and a maximum depth of cut of 5.00 mm (0.1969 inches), with a corner radius of 0.20 mm. A neutral rake geometry with a 2-degree rake angle supports controlled chip formation across a range of workpiece materials. Installation is performed by qualified machinists or CNC tooling technicians.

This insert is suited for small-diameter grooving applications where precise width control and depth consistency are critical. The MB09 insert style and size 9 seat make it compatible with CoroCut MB toolholders designed for that seat size. Typical applications include external grooving, undercut work, and parting on small-diameter turned components in production and job-shop environments. The right-hand orientation determines the required toolholder configuration. ISO code for this insert is MB-09FB300-02-14R 1025.

Key Features

• Solid carbide substrate with PVD-applied TiAlN/TiN coating for wear resistance and thermal stability
• 3.00 mm cutting width with a maximum depth of cut of 5.00 mm
• Corner radius of 0.20 mm (0.0079 inches) for precise groove geometry
• Neutral rake geometry with 2-degree rake angle for controlled chip evacuation
• Right-hand orientation — verify toolholder hand before ordering
• Multi-use capable insert within the CoroCut MB platform

Compatibility

Designed for use with CoroCut MB series toolholders accepting insert seat size 9. ISO code MB-09FB300-02-14R 1025 identifies the precise toolholder interface required. Confirm seat size and hand orientation against your toolholder specification before installation.

Installation Notes

This insert is installed and replaced by trained machinists or CNC tooling technicians. Power down and lock out the machine before changing inserts. Use the correct torque wrench and insert clamp screw per the toolholder manufacturer's documentation — do not overtighten by hand. Inspect the insert seat for debris or damage before seating a new insert to ensure proper contact and runout accuracy.
