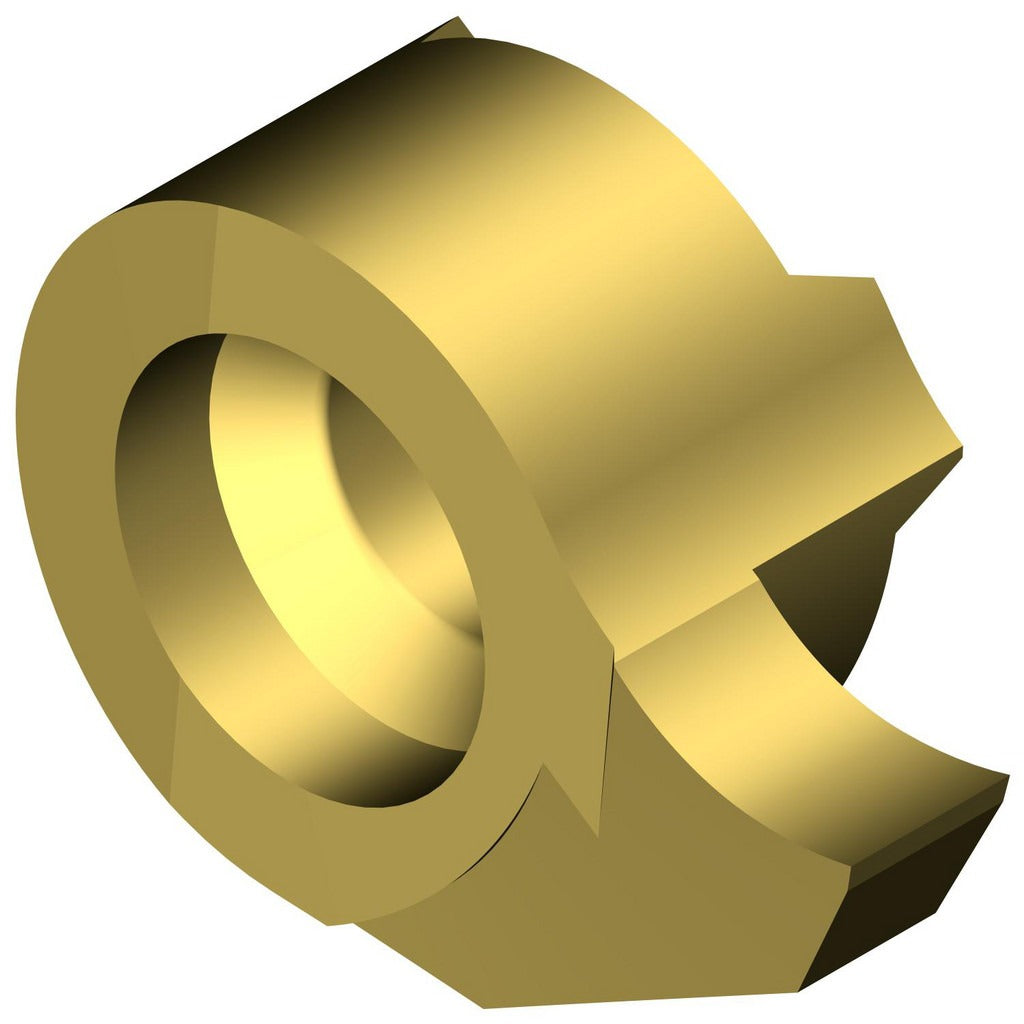

Sandvik Coromant 5735623 Grooving Insert 2mm Corocut Mb

Product Description

The SANDVIK COROMANT 5735623 is a solid carbide grooving insert designed for precise groove turning operations in metalworking applications. Belonging to the CoroCut MB series, this MB-07 style insert carries an ISO code of MB-07G200-00-11R 1025 and is finished with a PVD-applied TiAlN/TiN coating for extended tool life under demanding cutting conditions. It features a 2.00 mm cutting width and a maximum depth of cut of 2.80 mm, with a neutral rake angle of 2.00 degrees and a 90-degree lead angle. This insert is intended for installation by machinists and CNC tooling technicians working on lathes and turning centers.

The 5735623 is suited for small-diameter grooving and parting applications where tight tolerances and controlled chip formation are required. The CoroCut MB platform is commonly used in Swiss-type and multi-spindle turning machines as well as conventional CNC lathes handling miniature and precision components. The right-hand orientation and insert size 7 seat make it compatible with MB-series toolholders configured for that geometry. The maximum depth of cut range spans 2.00 mm to 3.00 mm, providing a controlled operating envelope for finish and semi-finish grooving passes.

Key Features

• Solid carbide substrate in manufacturer grade 1025 for wear resistance in steel and alloy cutting
• PVD-applied TiAlN/TiN dual coating for improved heat resistance and reduced flank wear
• 2.00 mm cutting width with a maximum depth of cut of 2.80 mm
• Neutral rake geometry with a 2.00-degree rake angle and 90-degree lead angle
• Right-hand cutting orientation for standard CoroCut MB toolholder setups
• Multi-use insert design suitable for grooving and light parting operations

Compatibility

Designed for use with CoroCut MB series toolholders accepting insert seat size 7 and MB-07 style inserts. Specific holder compatibility should be confirmed against the ISO code MB-07G200-00-11R 1025 using the manufacturer tooling catalog.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine powered down and all spindle motion stopped before insert indexing or replacement. Use the correct torque wrench and clamping screw specified for the CoroCut MB toolholder to secure the insert without over-tightening. Inspect the insert seat for chips or debris before seating the new insert. Confirm insert orientation and hand before resuming machining operations.
