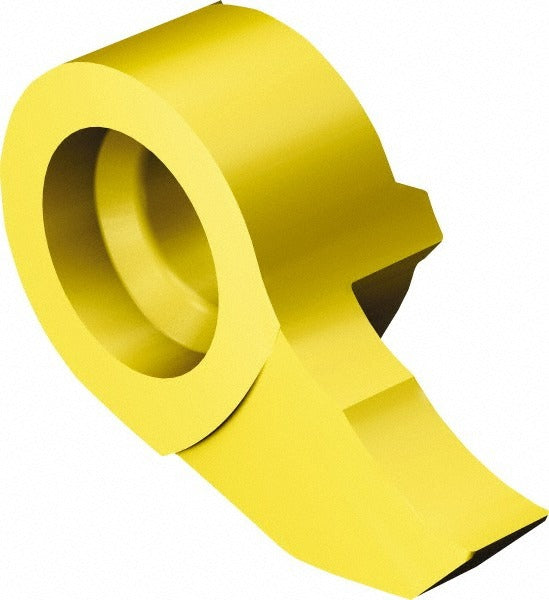

Sandvik Coromant 5735554 Grooving Insert MB07 Grade 1025

Product Description

The SANDVIK COROMANT 5735554 is a solid carbide grooving insert from the CoroCut MB series, designed for precision grooving operations on CNC lathes and turning centers. It carries a Grade 1025 carbide substrate with a PVD-applied TiAlN/TiN coating that improves wear resistance and extends tool life in demanding cuts. The insert features a right-hand orientation, a neutral rake angle, and a cutting width of 0.73 mm (0.0287 inches), making it suited for fine, narrow grooving where dimensional accuracy is critical. This insert is installed by machinists and CNC operators working in metalworking, precision parts manufacturing, and toolroom applications.

The 5735554 is engineered for use in the CoroCut MB system, targeting small-part and Swiss-type turning applications where tight tolerances and minimal chip clearance are required. With a maximum depth of cut of 1.20 mm (0.0472 inches) and an insert size of 07, it fits the corresponding MB-series toolholders and cartridges. It is appropriate for grooving operations on small-diameter workpieces in both production and job-shop environments. The multi-use designation indicates it can be applied across a range of grooving scenarios within its depth and width parameters.

Key Features

• Solid carbide Grade 1025 substrate for consistent performance in fine grooving
• PVD TiAlN/TiN coating improves heat resistance and extends cutting edge life
• 0.73 mm cutting width for narrow, precise groove profiles
• Maximum depth of cut of 1.20 mm suits small-diameter and Swiss-type turning
• Right-hand, neutral rake geometry with a 90-degree lead angle
• ISO code MB-07G070-00-10R 1025 for straightforward cross-referencing and ordering

Compatibility

Designed for use in SANDVIK COROMANT CoroCut MB series toolholders and cartridges accepting insert size 07. The ISO catalog reference MB-07G070-00-10R 1025 should be used to confirm holder compatibility before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator with the machine fully powered down and the spindle locked before handling the insert. Use the correct torque wrench and insert key specified for the CoroCut MB toolholder to seat the insert properly — do not overtighten by hand. Inspect the insert seat for debris or damage before seating a new insert, as contamination can affect runout and groove accuracy. Follow the toolholder manufacturer guidelines for clamping sequence and verify insert orientation matches the programmed tool path before resuming operation.
