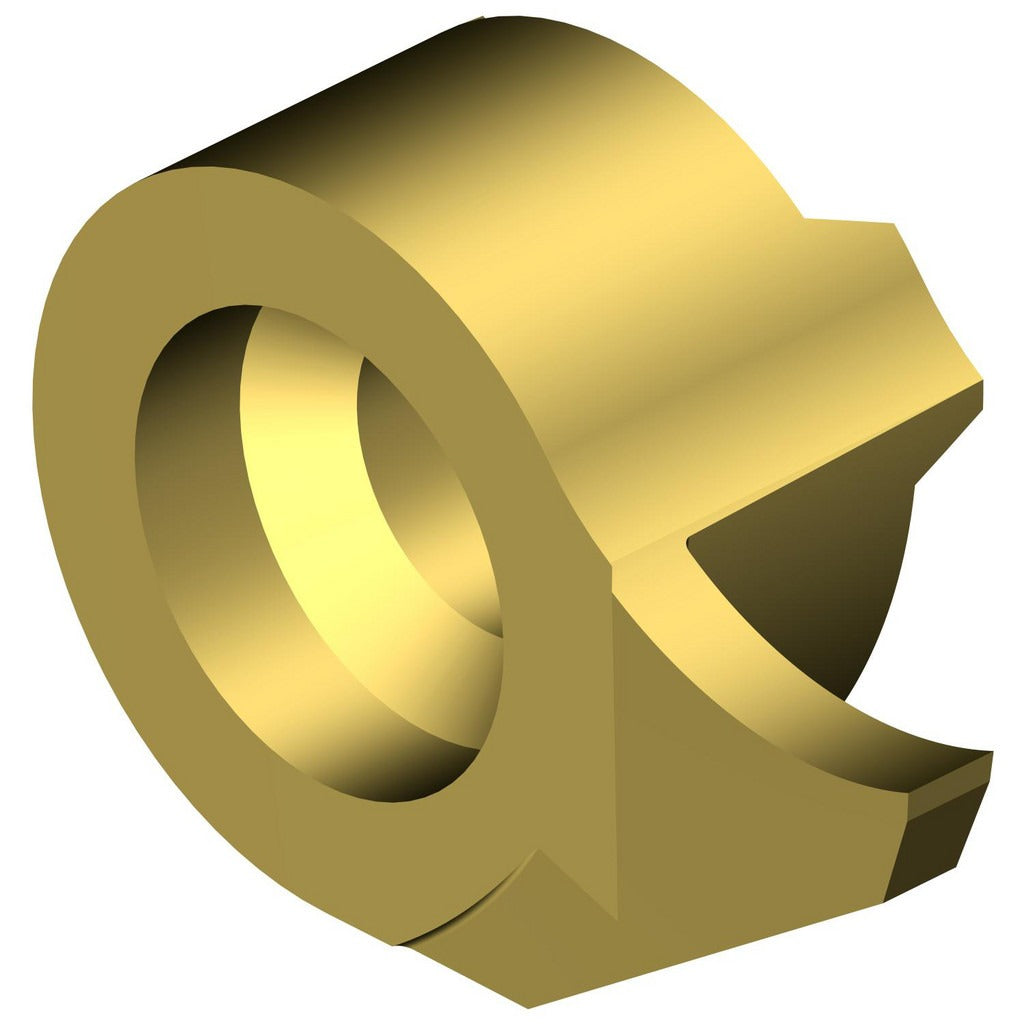

Sandvik Coromant 5735546 Grooving Insert 1mm Corocut Mb

Product Description

The SANDVIK COROMANT 5735546 is a solid carbide grooving insert in the CoroCut MB series, designed for precision grooving and parting operations on CNC turning centers and lathes. It carries a PVD-applied TiAlN/TiN coating and a neutral rake geometry with a 2-degree rake angle. The insert delivers a 1 mm cutting width and a maximum depth of cut of 3.1 mm, making it suited for small-diameter and miniature component grooving. Machining professionals and CNC toolroom technicians install this insert into compatible CoroCut MB toolholders for consistent, repeatable groove profiles in production and job-shop environments.

This insert is used in precision turning applications where tight groove widths and controlled depth are required, such as undercuts, snap-ring grooves, and parting on small-diameter workpieces. It is configured for right-hand cutting and fits the size 07 insert seat within the CoroCut MB toolholder system. The ISO code for this insert is MB-07G100-00-12R 1025, and it corresponds to manufacturer catalog number MB-07G100-00-12R 1025. It is appropriate for both production runs and prototype work requiring fine groove geometry in metals and similar machinable materials.

Key Features

• Solid carbide substrate with PVD TiAlN/TiN coating for wear resistance and thermal stability
• 1 mm cutting width with a maximum depth of cut of 3.1 mm
• Right-hand cutting configuration, neutral rake, 2-degree rake angle
• Size 07 insert seat, compatible with CoroCut MB series toolholders
• 90-degree lead angle for accurate groove wall geometry
• Multi-use design suitable for grooving and parting operations

Compatibility

Designed for use with CoroCut MB series toolholders accepting a size 07 insert seat. The ISO designation MB-07G100-00-12R 1025 should be referenced when matching this insert to a compatible holder or replacement application.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom technician with the machine fully stopped and in a locked-out, de-energized state. Seat the insert firmly into the toolholder pocket and verify clamping torque per the toolholder manufacturer's specifications before running. Inspect the insert seat for chips or debris before installation, as contamination can affect seating and cutting accuracy. Follow applicable shop safety protocols and machine tool manufacturer guidelines during tool changes.
