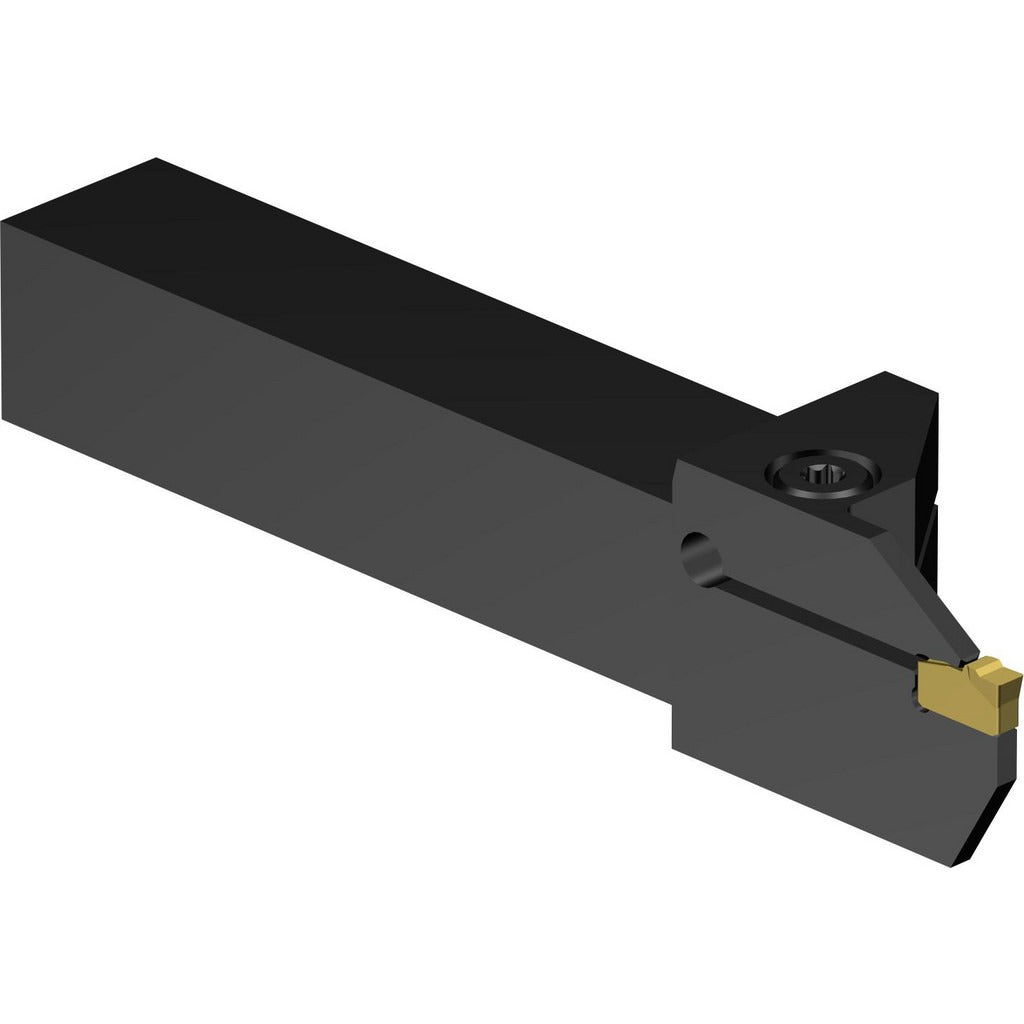

Sandvik Coromant 5733609 Grooving Cutoff Toolholder Left Hand

Product Description

The SANDVIK COROMANT 5733609 is an indexable grooving and cutoff toolholder in the T-Max Q-Cut series, designed for external turning operations on CNC lathes and turning centers. Built to toolholder style LF151.23, it accepts N151.2-300-5E inserts secured by a clamp-style holding method. The holder supports groove widths from 3.00 mm to 4.15 mm and a maximum depth of cut of 20.07 mm (0.79 inches). With a 3/4 x 3/4 inch square shank and an overall length of 127.00 mm, it fits standard toolpost and turret setups. This is a left-hand configuration, suited for right-to-left cutting passes on a lathe spindle.

This toolholder is intended for professional machining environments including job shops, production turning, and maintenance machining operations. The T-Max Q-Cut platform is a common choice for grooving, parting, and recessing applications on steel, stainless, and other machinable alloys. The 3/4 inch square shank fits a wide range of standard tool blocks and quick-change turret holders. Machinists working with external groove widths in the 3.00 to 4.15 mm range will find the insert seat size of 30.0 appropriate for light to medium stock removal.

Key Features

• Left-hand external grooving and cutoff configuration for right-to-left cutting direction
• Accepts N151.2-300-5E indexable inserts with clamp-style retention
• Groove width range: 3.00 mm to 4.15 mm (0.1181 to 0.1654 inches)
• Maximum depth of cut: 20.07 mm (0.79 inches)
• 3/4 x 3/4 inch square shank, 86.00 mm shank length, 127.00 mm overall length
• No coolant-through feature; compatible with external coolant delivery
• Part of the T-Max Q-Cut series, toolholder style LF151.23

Compatibility

Designed for use with N151.2-300-5E indexable inserts. This toolholder is part of the T-Max Q-Cut series and fits standard 3/4 inch square-shank tool blocks and turret holders used in external grooving and cutoff applications.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Power down and lock out the machine before mounting or removing the toolholder from the turret or tool block. Ensure the insert is fully seated and the clamp is properly engaged before initiating a cut. Verify left-hand orientation matches the programmed cutting direction before running the part program.
