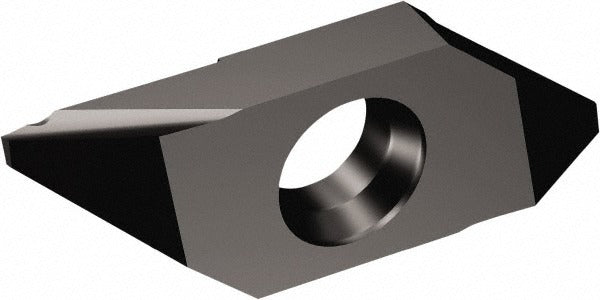

Sandvik Coromant 5733332 Turning Insert MABR3020

Product Description

The SANDVIK COROMANT 5733332 is a solid carbide turning insert designed for precision parting and grooving operations on CNC lathes and turning centers. Manufactured to the MABR 3 020 1105 ISO designation, this insert features a TiAlN coating applied via PVD process, delivering strong oxidation resistance and wear performance in demanding cutting environments. The insert carries a 0.20 mm corner radius and a 1/8-inch inscribed circle, making it well suited for small-diameter and fine-detail turning work. It is installed and replaced by machinists and CNC tooling technicians as a consumable cutting element within the CoroCut XS system.

This insert is intended for use in the Sandvik Coromant CoroCut XS toolholder system, targeting small-part turning applications in both production and job-shop environments. The primary workpiece material code is S, indicating suitability for heat-resistant superalloys and titanium alloys, which are common in aerospace, medical, and energy component machining. The full-radius geometry supports profiling and grooving passes. Insert holding is achieved via screw clamping, consistent with the CoroCut XS system design.

Key Features

• TiAlN coating via PVD process for high-temperature wear resistance
• Full-radius geometry supports profiling, grooving, and turning passes
• 0.20 mm corner radius for fine-detail cutting paths
• Screw-held mounting compatible with CoroCut XS toolholders
• ISO code MABR 3 020 1105 for straightforward cross-referencing
• Right-hand insert orientation

Compatibility

Designed for use in the Sandvik Coromant CoroCut XS toolholder system. Confirm holder seat size and insert pocket designation against the ISO code MABR 3 020 1105 before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before changing inserts. Use the correct Torx or hex key specified by the toolholder manufacturer to seat the clamping screw — do not over-tighten or use impact tools. Verify insert seating and orientation before resuming cutting operations.
