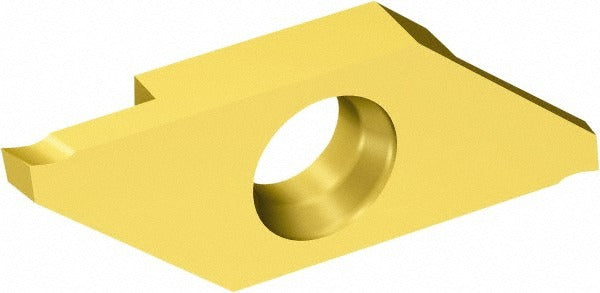

Sandvik Coromant 5733321 Cutoff Insert 1mm Corocut Xs

Product Description

The SANDVIK COROMANT 5733321 is a solid carbide cutoff insert for parting and grooving operations on CNC turning centers and lathes. Carrying the MACL3100-R 1025 catalog designation, it belongs to the CoroCut XS series and is intended for precision cutoff work in tight clearance applications. The insert features a 1.00 mm cutting width, a left-hand lead angle orientation of 0 degrees, and a PVD-applied TiAlN/TiN coating for wear resistance and thermal stability. A clamp holding method secures the insert in the tool body. Machinists and CNC operators performing high-precision parting operations on small-diameter workpieces are the primary installers of this tooling.

This insert is suited for parting and narrow grooving applications where tight tolerances and minimal material loss are required. The CoroCut XS series is designed for small part machining, Swiss-type lathes, and gang-tool setups where radial space is limited. The 1025 manufacturer grade with PVD coating performs well in steel and stainless steel workpiece materials. With a maximum depth of cut of 6.30 mm and an overall insert length of 12.02 mm, it covers a practical range of small-bore and OD parting tasks.

Key Features

• 1.00 mm cutting width for minimal material removal and precise parting cuts
• Solid carbide construction with PVD-applied TiAlN/TiN coating for extended tool life
• Left-hand insert hand with 0-degree lead angle for controlled chip direction
• MACL chipbreaker geometry designed for small-part and narrow-groove applications
• Maximum depth of cut of 6.30 mm suits small-diameter parting operations
• 0.05 mm corner radius minimizes workpiece stress at the cut zone

Compatibility

Designed as an OEM-style insert for SANDVIK COROMANT CoroCut XS series toolholders that accept size 3 insert seat, left-hand orientation, with a clamp holding method.

Installation Notes

Installation is performed by qualified CNC machinists or tooling technicians. Disengage machine power and verify the spindle is fully stopped before changing inserts. Seat the insert fully in the pocket and confirm the clamp is properly torqued per the toolholder documentation before resuming cuts. Inspect the insert seat for debris or damage each time an insert is replaced to prevent premature edge failure.
