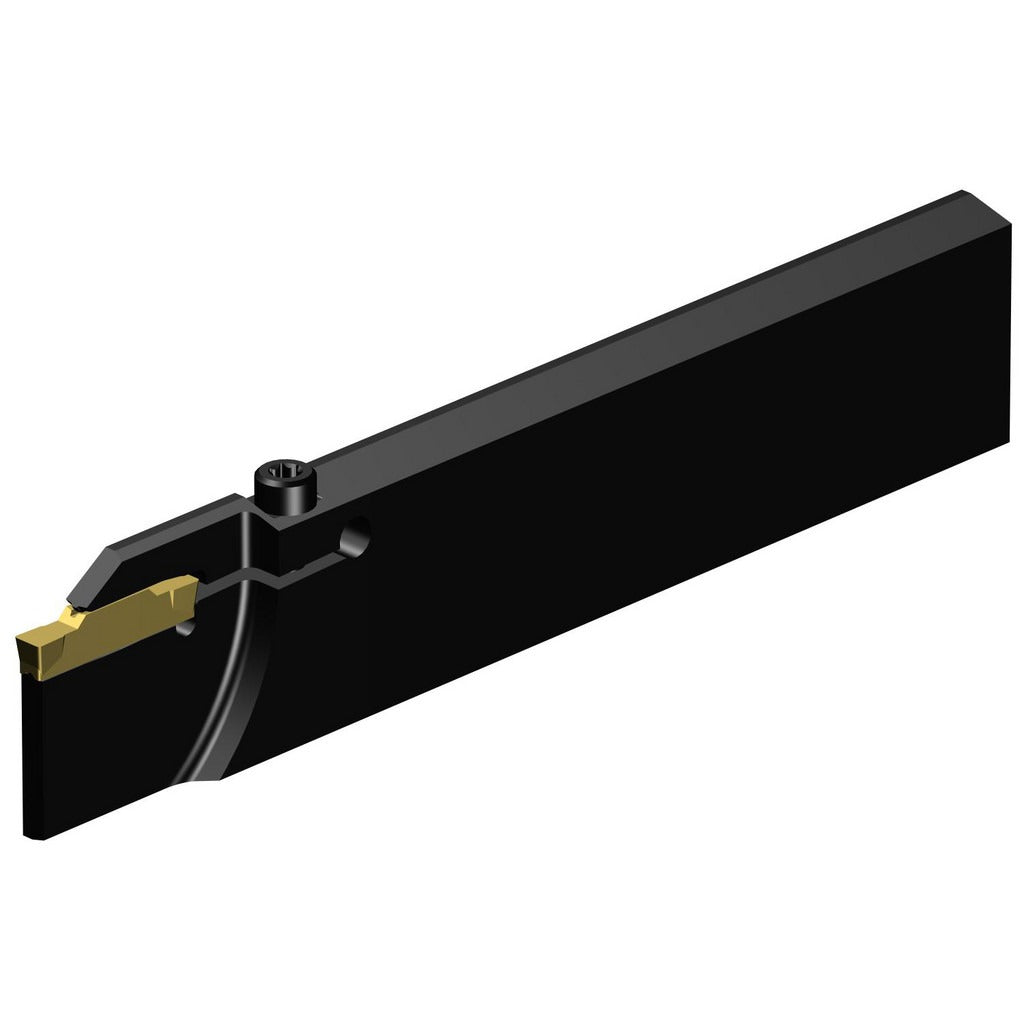

Sandvik Coromant 5732410 Indexable Cutoff Blade Left Hand

Product Description

The SANDVIK COROMANT 5732410 is a single-end, left-hand indexable cutoff blade designed for parting and grooving operations on CNC lathes and turning centers. Built to the Corocut 1-2 series standard, this blade measures 1.256 inches high, 0.328 inches wide, and 5.906 inches in overall length. It uses a clamp-style insert holding method and accepts Corocut-compatible inserts in size code H, specifically the N123H2-0400-0004-TF insert style. The blade supports a maximum depth of cut of 1.260 inches and a maximum workpiece diameter of 2.520 inches, making it well-suited for medium-duty parting work on bar stock and turned components. Machinists and toolroom technicians are the primary installers.

This blade is intended for parting and cutoff applications in production turning environments, both job shop and high-volume manufacturing. The left-hand cutting direction suits specific spindle rotation and tooling layout configurations where a right-hand blade would not clear properly. It is appropriate for use on CNC turning centers and manual lathes configured for left-hand tooling. The Corocut 1-2 series is a widely used platform in industrial metalworking, and this blade fits that tooling system's standard blade pockets and holder interfaces. Typical materials parted include steel, stainless, and non-ferrous alloys within the workpiece diameter range.

Key Features

• Single-end design with left-hand cutting direction for specific machine and tooling configurations
• Clamp-style insert retention for secure, repeatable insert positioning under cutting loads
• Compatible insert style N123H2-0400-0004-TF, insert size code H
• Maximum depth of cut of 1.260 inches supports full parting of workpieces up to 2.520 inches in diameter
• Corocut 1-2 series platform ensures broad holder and accessory compatibility within that tooling system
• Blade overall length of 5.906 inches accommodates standard turning center blade pockets

Compatibility

Designed for use with Corocut 1-2 series tooling holders and compatible with the N123H2-0400-0004-TF insert in size code H. Verify holder pocket dimensions and cutting direction requirements before installation.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine before changing or seating the blade in the holder. Ensure the clamp and insert seat are clean and free of chips before torquing the insert clamp. Follow the machine tool builder and tooling manufacturer guidelines for proper blade clamping force and overhang to avoid chatter or blade deflection during parting operations.
