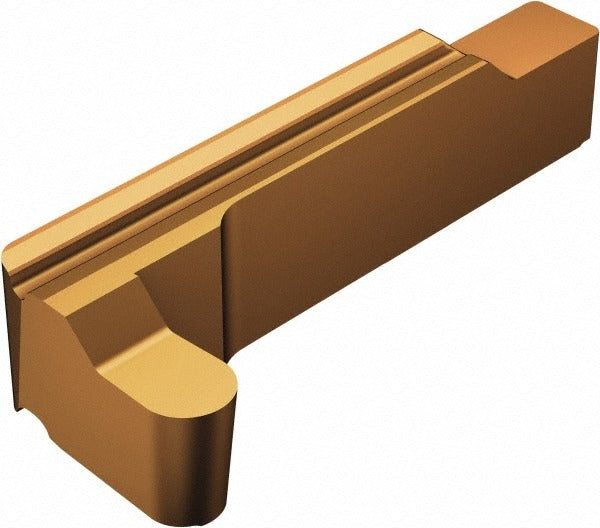

Sandvik Coromant 5732324 Grooving Insert Corocut 1-2

Product Description

The SANDVIK COROMANT 5732324 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. It features a TiAlN and AlCr2O3 PVD coating applied by physical vapor deposition, delivering strong heat and wear resistance at the cutting edge. The insert carries a 3 mm cutting width, a maximum depth of cut of 8.99 mm, and a corner radius of 1.50 mm. Left-hand orientation and a positive rake geometry combine to reduce cutting forces and improve chip evacuation. Machinists and CNC operators working in production turning environments install this insert as part of the CoroCut 1-2 tooling system.

This insert is suited for grooving operations on workpieces in both light and medium-duty turning applications. The RS chip breaker geometry promotes controlled chip formation across a maximum depth of cut range of 5.00 mm to 10.00 mm. It is compatible with CoroCut 1-2 series toolholders that accept an L seat size and an X1 insert size designation. The ISO code for this insert is LG123L1-0300-0015-RS1115, which can be used to cross-reference toolholder compatibility and ordering documentation. Typical applications include groove turning on steel, stainless, and other machinable alloys where dimensional accuracy and surface finish are critical.

Key Features

• Solid carbide substrate with TiAlN and AlCr2O3 PVD coating for extended tool life
• 3 mm cutting width with 8.99 mm maximum depth of cut
• Left-hand insert orientation with positive rake for reduced cutting forces
• RS chip breaker geometry for controlled chip formation
• L seat size, X1 insert size — fits CoroCut 1-2 system toolholders
• Multi-use tool designation supports versatile grooving and parting setups

Compatibility

Designed for use with SANDVIK COROMANT CoroCut 1-2 series toolholders accepting L seat size and X1 insert size. ISO code LG123L1-0300-0015-RS1115 should be referenced when verifying toolholder and insert pocket compatibility.

Installation Notes

Installation is performed by a machinist or CNC tooling technician during machine setup. Power down and lock out the machine before seating or removing inserts. Use the correct torx or insert-clamping key specified by the toolholder manufacturer to secure the insert — do not overtighten or substitute non-rated hardware. Verify insert seating, orientation, and clearance before resuming machine operation.
