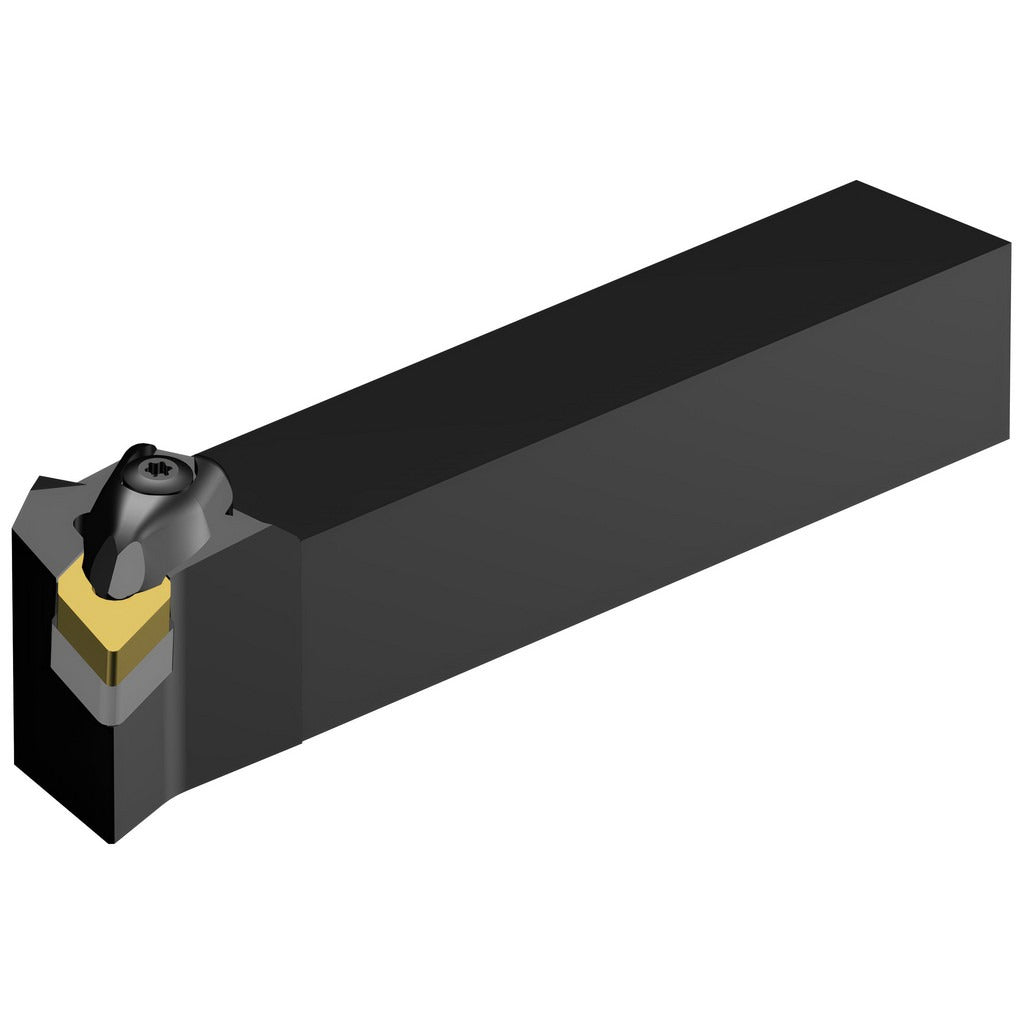

Sandvik Coromant 5732261 Ddqnr Turning Toolholder

Product Description

The SANDVIK COROMANT 5732261 is a right-hand indexable turning toolholder in the DDQNR style, designed for negative-rake facing operations on CNC lathes and turning centers. It uses a wedge clamping method to secure DNMG 432 inserts and delivers a rake angle of -6 degrees, providing stable, predictable cutting performance. The shank measures 1 inch wide by 1 inch high, with an overall length of 6 inches and a head length of 1.42 inches. Weighing 1.74 pounds, it is built from steel for rigidity under interrupted cuts and continuous facing passes. This toolholder is installed by machinists and CNC technicians in production and job-shop turning applications.

This toolholder is suited for facing operations on both ferrous and non-ferrous workpieces in residential machine shops and industrial production environments. The DDQNR style positions the insert for right-hand turning with a negative-rake geometry that extends insert life under high-feed conditions. The back of bar to cutting edge dimension is 6 inches, matching standard tool post setups on mid-range engine lathes and gang-tooled turning centers. The insert inscribed circle is 0.5 inches, compatible with standard DNMG 432 insert geometry. It is classified as a multi-use toolholder, making it adaptable across a range of turning programs with insert changes only.

Key Features

• DDQNR toolholder style with right-hand orientation for facing and turning operations
• Wedge clamping method locks DNMG 432 inserts securely under heavy cutting loads
• Negative rake angle of -6 degrees for improved insert edge strength and tool life
• 1 inch by 1 inch steel shank provides rigidity and fits standard tool post bores
• Overall length of 6 inches with a 1.42-inch head length for consistent tool reach
• Multi-use designation allows rapid insert swaps across different turning programs

Compatibility

Designed for use with DNMG 432 inserts. Insert inscribed circle is 0.5 inches. Confirm turret or tool post bore accepts a 1 inch by 1 inch shank before installation. No additional specific machine model compatibility data was provided in the product information.

Installation Notes

Installation is performed by a qualified machinist or CNC technician. Power down and lock out the machine spindle before removing or installing the toolholder. Seat the shank fully into the tool post or turret bore and torque the clamping fasteners per the machine tool manufacturer specifications. Inspect the insert pocket and wedge clamp for debris or wear before seating a new DNMG 432 insert.
