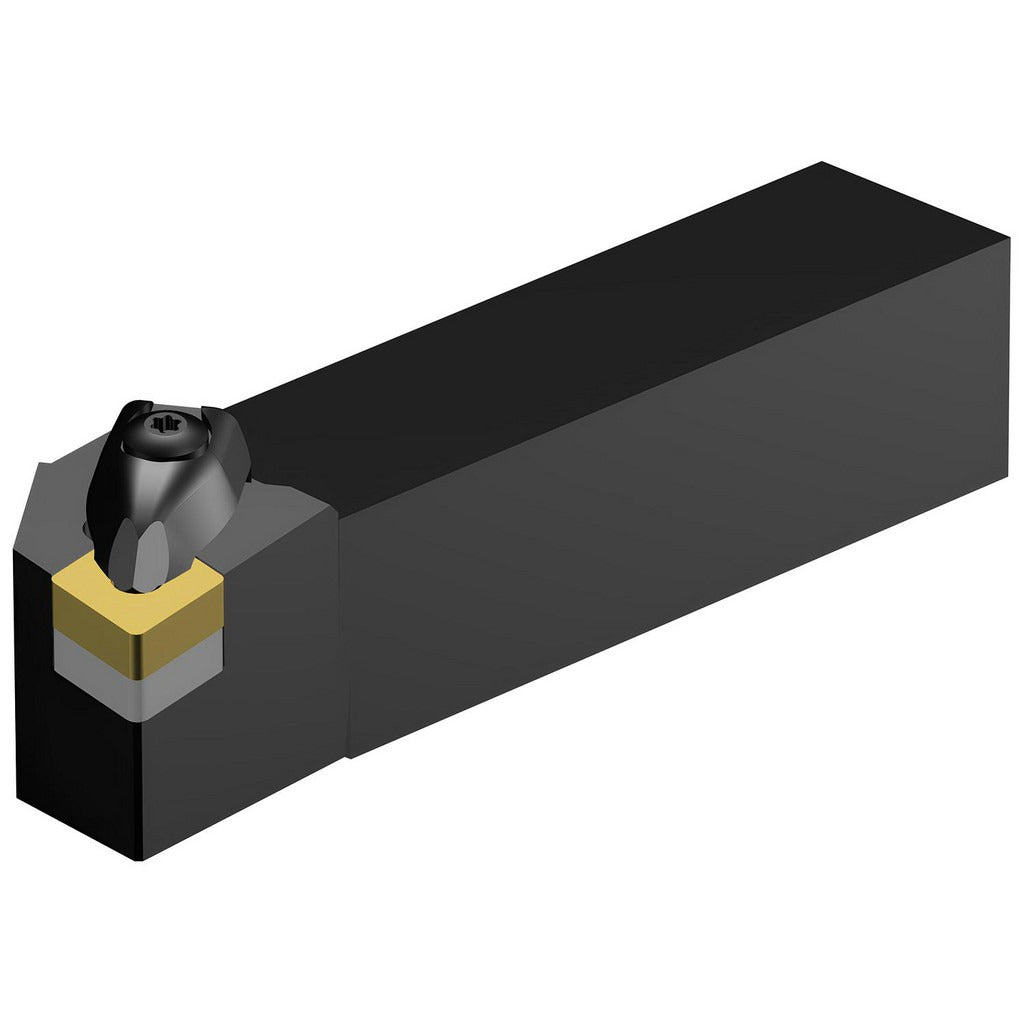

Sandvik Coromant 5731634 Turning Toolholder DCLNR205D Wedge

Product Description

The SANDVIK COROMANT 5731634 is a right-hand indexable turning toolholder in the DCLNR style, designed to accept CNMG 543 inserts secured by a wedge clamping method. The shank measures 1.25 x 1.25 inches with an overall length of 6.0 inches and a head length of 1.54 inches. Built from steel with a negative rake angle of -6 degrees, this toolholder delivers stable, rigid insert seating for facing and turning operations on CNC lathes and manual turning centers. It is installed by machinists and toolroom technicians in production and job-shop environments.

This toolholder is suited for facing operations on ferrous and non-ferrous workpieces in both production and job-shop turning setups. The DCLNR style positions the insert at a negative rake, making it a practical choice for interrupted cuts and general-purpose external turning where cutting-edge rigidity is a priority. The wedge clamping system provides positive insert retention during high-feed and heavy-depth-of-cut passes. It accommodates CNMG 543 inserts, which are widely used for medium to rough turning across a broad range of materials.

Key Features

• DCLNR toolholder style with right-hand cutting orientation
• Wedge insert clamping method for positive, vibration-resistant insert retention
• Accepts CNMG 543 inserts with a 0.625-inch inscribed circle
• Negative rake angle of -6 degrees suited for interrupted cuts and heavy turning
• Steel shank construction measuring 1.25 x 1.25 inches for rigid setup
• Multi-use tool designation supports facing and general external turning applications

Compatibility

Designed to accept CNMG 543 indexable inserts. Compatible with CNC lathes and manual turning centers that accommodate a 1.25 x 1.25-inch square shank toolholder in the DCLNR style.

Installation Notes

Installation is performed by machinists or toolroom technicians. The machine spindle must be stopped and all motion fully arrested before mounting or removing the toolholder. Secure the shank in the tool turret or tool post to the required clamping torque per machine manufacturer specifications. Inspect the insert pocket and wedge clamp for chips or debris before seating a new CNMG 543 insert to ensure proper contact and safe cutting performance.
