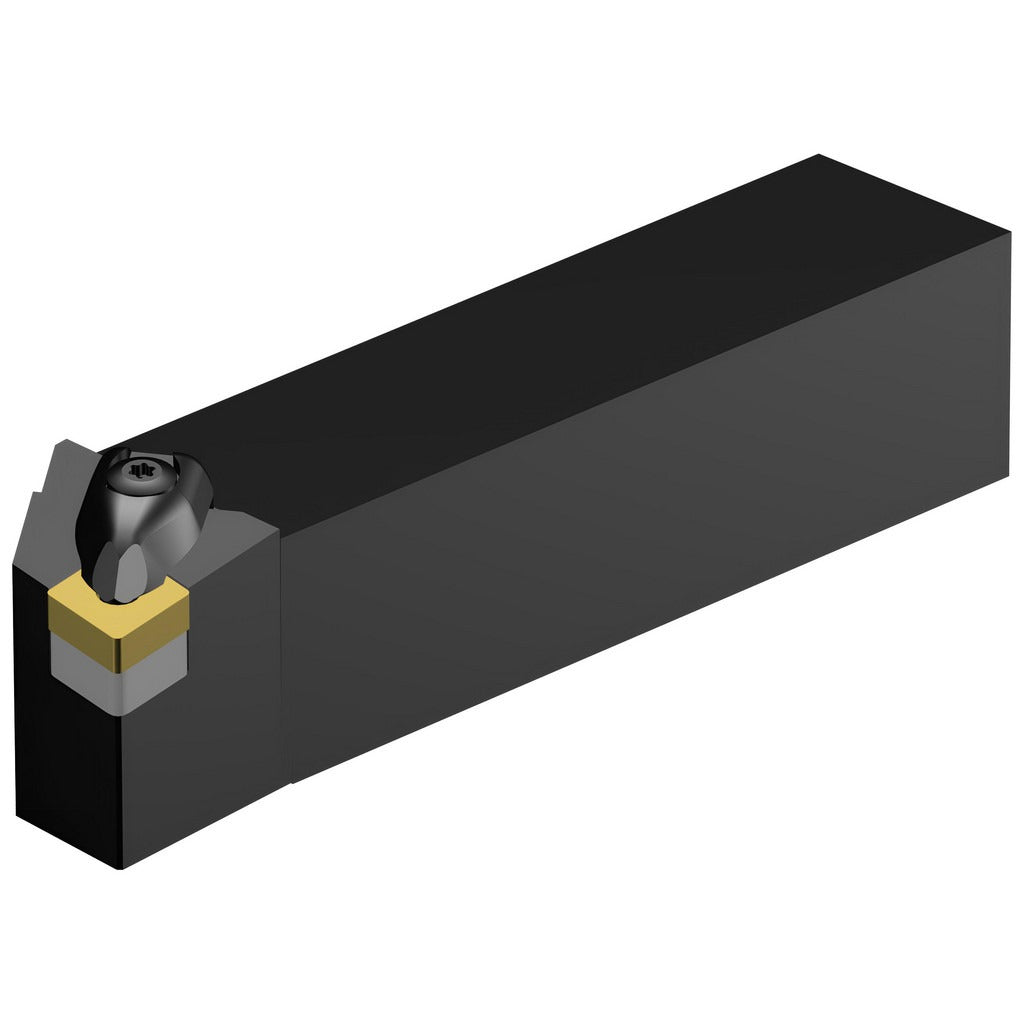

Sandvik Coromant 5731630 Turning Toolholder DCLNR204D Cnmg 432

Product Description

The SANDVIK COROMANT 5731630 is a right-hand indexable turning toolholder in the DCLNR204D style, designed for use with CNMG 432 inserts secured by a wedge clamping method. Built from steel with a 1.25 x 1.25 inch square shank and an overall length of 6 inches, this toolholder delivers a rigid, repeatable platform for external turning and facing operations on CNC lathes and turning centers. The negative rake geometry at -6 degrees suits heavy interrupted and continuous cuts in a wide range of workpiece materials. Machinists and toolroom professionals in production and job-shop environments rely on this holder for consistent insert seating and secure clamping during high-feed operations.

This toolholder is suited for facing and external turning applications on CNC lathes in both production and job-shop settings. The DCLNR style positions the insert at a lead angle appropriate for straight turning and facing passes. With a head length of 1.26 inches and a back-of-bar to cutting edge distance of 6 inches, the holder fits standard tool turret pockets sized for a 1.25 x 1.25 inch shank. It accepts CNMG 432 inserts with a 0.5 inch inscribed circle, a widely stocked insert geometry available in numerous grades for steel, cast iron, and stainless applications.

Key Features

• DCLNR204D toolholder style with right-hand cutting orientation
• Wedge insert clamping method for secure, repeatable insert seating
• Accepts CNMG 432 inserts with 0.5 inch inscribed circle
• Negative rake angle of -6 degrees for heavy-duty turning and facing
• 1.25 x 1.25 inch steel shank fits standard turret pockets
• Multi-use capable for facing and external straight turning operations

Compatibility

Designed for use with CNMG 432 indexable inserts. Compatible with CNC lathe turret pockets and tool blocks sized for a 1.25 x 1.25 inch square shank.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before changing toolholders or inserts per applicable machine safety procedures. Secure the shank fully in the turret pocket to the manufacturer-specified engagement depth before clamping. Inspect the insert pocket and wedge clamping hardware for wear or damage before seating a new CNMG 432 insert.
