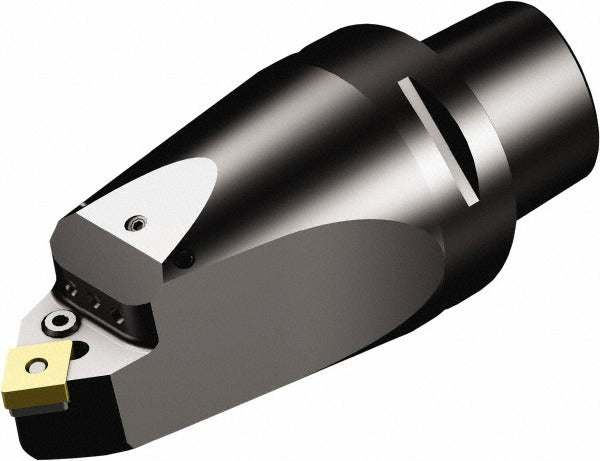

Sandvik Coromant 5730332 Modular Turning Profiling Head C6

Product Description

The SANDVIK COROMANT 5730332 is a modular turning profiling head designed for external turning and profiling operations on CNC lathes and turning centers. Part of the T-Max P series, this head features a C6 system size with a head length projection of 4.5276 inches (115 mm) and a neck diameter of 2.4803 inches (63 mm). It accepts CNMG 120408 inserts held in place by a lever clamping method and supports through-coolant delivery for improved chip evacuation and tool life. The neutral cutting direction makes it suitable for straight turning applications. Machinists and tooling specialists install and configure this head as part of a modular tooling assembly.

This profiling head is used in external turning and contour turning operations on medium to large workpieces in production and job-shop environments. The C6 interface and 40 mm head connection size are standard in modular tooling systems common to horizontal and vertical turning centers. A neutral cutting direction suits applications where approach from either side is required. Through-coolant compatibility supports high-speed or difficult-to-machine materials where heat control at the cutting zone is critical.

Key Features

• T-Max P series modular head with C6 system size for rigid, repeatable tooling assembly
• Accepts CNMG 120408 inserts with lever clamping for secure, consistent insert seating
• Through-coolant capable for improved chip evacuation and thermal management
• Neutral cutting direction supports versatile approach angles in external turning
• Head length projection of 4.5276 inches (115 mm) provides reach for profiling operations
• Axial and radial rake angles of -6 degrees for controlled cutting geometry

Compatibility

Compatible with CNMG 120408 insert style. Designed for use with C6 modular tooling interfaces and a 40 mm head connection size within the T-Max P series system.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with modular turning systems. Ensure the machine spindle is fully stopped and the turret is locked before mounting or removing the head. Verify the C6 coupling and head connection are clean and free of debris before assembly to ensure proper seating and runout. Follow the machine tool manufacturer and tooling system guidelines for clamping torque and coolant line connection.
