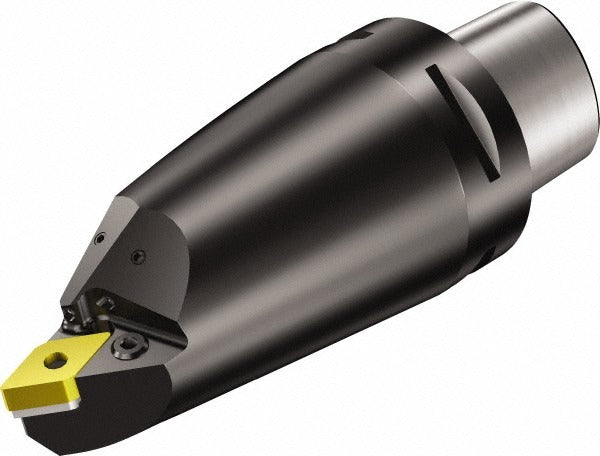

Sandvik Coromant 5730258 Modular Turning Profiling Head C6

Product Description

The SANDVIK COROMANT 5730258 is a modular turning profiling head designed for external turning operations in CNC lathe and turning center applications. Built to Size C6 with a head length projection of 130 mm (5.1181 inches), this right-hand cutting head accepts DNMG 150608 inserts secured by a lever-clamping mechanism. The center-to-cutting-edge dimension is 0.56 mm (0.022 inches), supporting precise profiling work. Through-coolant capability directs cutting fluid directly to the cutting zone, helping manage heat and chip evacuation during demanding turning passes. This head is part of the T-Max P series, a system engineered for indexable insert turning with modular interface flexibility.

This profiling head is suited for external turning and profiling operations on CNC turning centers and lathes in industrial metalworking environments. The Size C6 modular interface and Head Connection Size 16 allow integration into compatible T-Max P modular tooling systems. It is typically installed by machinists and CNC tooling technicians in precision machining shops, production turning cells, and job shops requiring consistent insert indexing and reliable performance across high-volume external profiling cuts.

Key Features

• Size C6 modular interface with Head Connection Size 16 for T-Max P system compatibility
• Right-hand cutting direction for standard external turning orientations
• Lever clamping holds DNMG 150608 inserts securely during profiling operations
• Through-coolant delivery directs fluid to the cutting zone for heat control and chip management
• Axial rake angle of -5 degrees and radial rake angle of -15 degrees for controlled cutting geometry
• Neck diameter of 63 mm (2.4803 inches) provides rigidity at the tool-spindle interface

Compatibility

Compatible with DNMG 150608 inserts. Designed for use within the SANDVIK COROMANT T-Max P modular tooling system at Size C6 interface with Head Connection Size 16.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine spindle fully stopped and all motion axes locked out per facility lockout/tagout procedures. Verify the modular interface is clean and free of chips or debris before seating the head. Torque the clamping mechanism only to the tooling system specifications provided in the SANDVIK COROMANT T-Max P documentation — do not use values not sourced from the manufacturer. Confirm through-coolant port alignment with the machine tool coolant supply before resuming operation.
