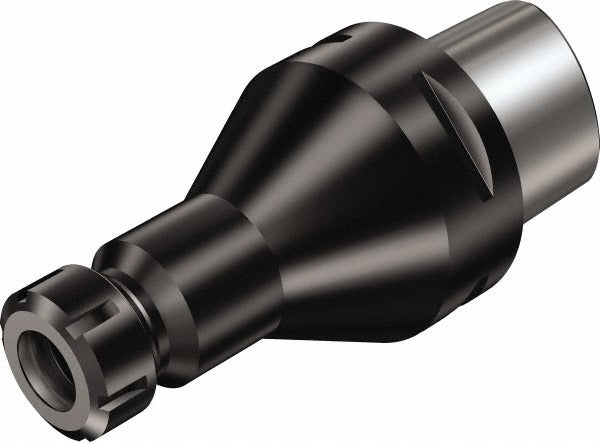

Sandvik Coromant 5730052 ER32 Collet Chuck C6 Modular

Product Description

The SANDVIK COROMANT 5730052 is an ER32 collet chuck with a modular connection shank designed for precision CNC machining operations. It accepts the ER32 collet series and connects via a C6 modular interface, making it compatible with modular tooling systems used in machining centers and turning centers. The chuck features through-coolant capability, directing cutting fluid directly to the tool tip for improved chip evacuation and tool life. With a projection of 5.1181 inches and a nose diameter of 1.9685 inches, this chuck is suited for applications requiring extended reach. It is balanced for operation up to 20,000 RPM, supporting high-speed machining applications.

This collet chuck is intended for use in professional machining environments where modular tooling systems are employed. The C6 modular connection shank allows rapid tool changes on compatible machining centers equipped with modular interfaces. Through-coolant support makes it appropriate for high-speed or high-heat applications such as deep-cavity milling, drilling, and reaming where coolant delivery at the cutting edge is critical. Installation and tool changes are performed using a standard ER collet wrench.

Key Features

• ER32 collet system accepts a wide range of ER32 collet sizes for versatile toolholding
• C6 modular connection shank enables quick-change capability on compatible modular tooling systems
• Through-coolant design channels cutting fluid directly to the tool tip
• Balanced to 20,000 RPM for stable high-speed machining operations
• 5.1181-inch projection provides extended reach into deep cavities or complex workpieces
• Actuator type is wrench-driven for secure collet clamping

Compatibility

Designed for use with C6 modular connection tooling systems that accept ER32 collet chucks. Confirm compatibility with the specific machine spindle interface and modular system in use before installation.

Installation Notes

Installation should be performed by a qualified machinist or tooling specialist familiar with modular tooling systems. Ensure the machine spindle is fully powered down and locked out before mounting or removing the chuck. Use the appropriate ER collet wrench and a calibrated torque wrench when tightening the collet nut to the toolholder manufacturer specifications. Verify that the through-coolant passages in the toolholder and spindle are clear and aligned before resuming operation.
