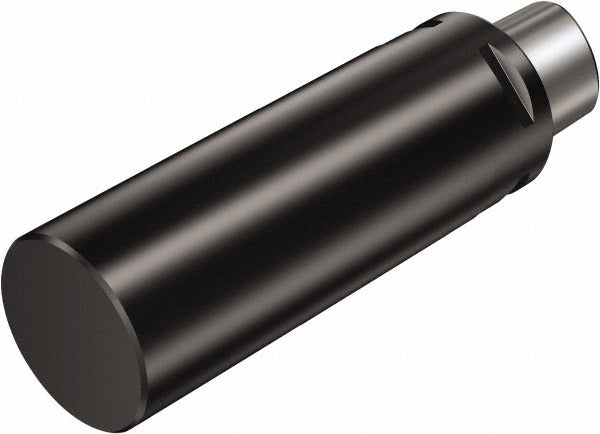

Sandvik Coromant 5729808 Rotary Tool Holder Blank C6

Product Description

The SANDVIK COROMANT 5729808 is a rotary tool holder blank designed for use with modular connection shank systems featuring a C6 interface. This blank provides the foundation for custom or application-specific tooling configurations in CNC turning and machining centers. It measures 4.724 inches in blank diameter and 9.2126 inches in overall length, with a projection from flange to nose end of 7.0866 inches. At 33.35 pounds, this is a substantial precision tooling component intended for heavy-duty machining applications. It is installed and configured by machinists and tooling engineers working in production or job-shop environments.

This tool holder blank is suited for modular tooling systems in CNC turning centers and machining cells that use the C6 connection standard. The C6 interface is a common modular coupling size used in high-precision metal-cutting operations across both production and prototype environments. The blank format allows shops to machine or adapt the nose end to specific tooling requirements, making it a flexible base component for custom tooling builds.

Key Features

• C6 modular connection for compatibility with standard C6-interface tooling systems
• 4.724-inch blank diameter provides substantial material stock for custom machining
• 9.2126-inch overall length accommodates a range of reach requirements
• 7.0866-inch projection from flange to nose end for extended reach setups
• Modular connection shank design supports quick-change tooling configurations
• Sold individually, allowing single-unit procurement for targeted tooling builds

Compatibility

Designed for use with modular tooling systems that accept a C6 connection interface. Specific machine or system compatibility should be confirmed against the C6 connection standard for the target CNC platform.

Installation Notes

Installation of this tool holder blank should be performed by a qualified machinist or tooling engineer familiar with modular tooling systems and CNC machine interfaces. Ensure the machine spindle or turret is fully powered down and locked out before mounting or removing any tooling components. Follow the machine tool manufacturer torque and clamping guidelines for the C6 modular connection. Any custom machining of the blank nose end should be performed with appropriate fixturing to maintain concentricity and runout tolerances.
