Sandvik Coromant 5729624 Capto Weldon Shank Adapter

Product Description

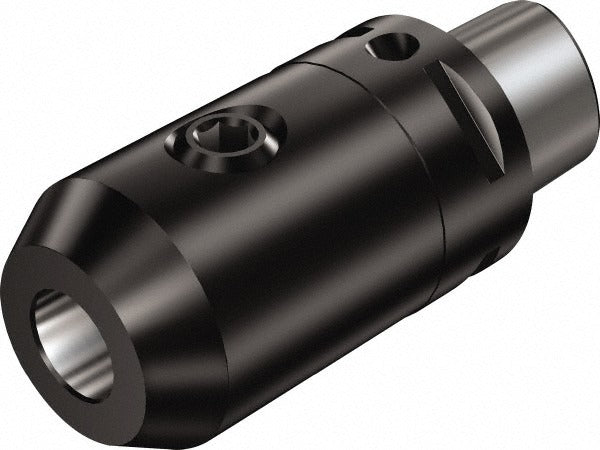

The SANDVIK COROMANT 5729624 is a Capto to Weldon straight shank adapter designed to interface a C6 outside modular Capto connection with a Weldon-style straight shank toolholder. It allows machinists and toolroom technicians to extend or adapt tooling setups on CNC machining centers and milling machines. The adapter features a 1.5-inch hole diameter, a 90mm projection length, and a 61.3mm nose diameter. Through-coolant capability delivers cutting fluid directly to the tool tip, supporting high-productivity metal removal operations and extended insert life.

This adapter is suited for precision machining environments where Capto modular tooling systems are already in use. Typical applications include milling, drilling, and boring setups on horizontal and vertical machining centers. The through-coolant design makes it particularly useful in high-speed or deep-pocket operations where chip evacuation and thermal management are critical. It is installed by toolroom technicians or CNC setup personnel as part of a modular tooling assembly.

Key Features

• C6 outside modular Capto connection for secure, repeatable interface
• 90mm projection length for extended tooling reach
• 1.5-inch hole diameter accommodates Weldon straight shank tools
• 61.3mm nose diameter for stable clamping geometry
• Through-coolant compatible for improved chip control and tool life
• Overall length of 128mm for precise stack-up planning

Compatibility

Designed for use with C6 Capto modular tooling systems on CNC machining centers accepting Weldon straight shank toolholders. No specific compatible machine model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified toolroom technician or CNC setup operator following machine builder and tooling manufacturer guidelines. Power down and lock out the machine spindle before mounting or removing any tooling adapters. Verify that all mating surfaces are clean and free of chips or burrs before assembly. Confirm through-coolant port alignment with the machine spindle coolant circuit before operation.
