Sandvik Coromant 5728341 Modular Grooving Head C4

Product Description

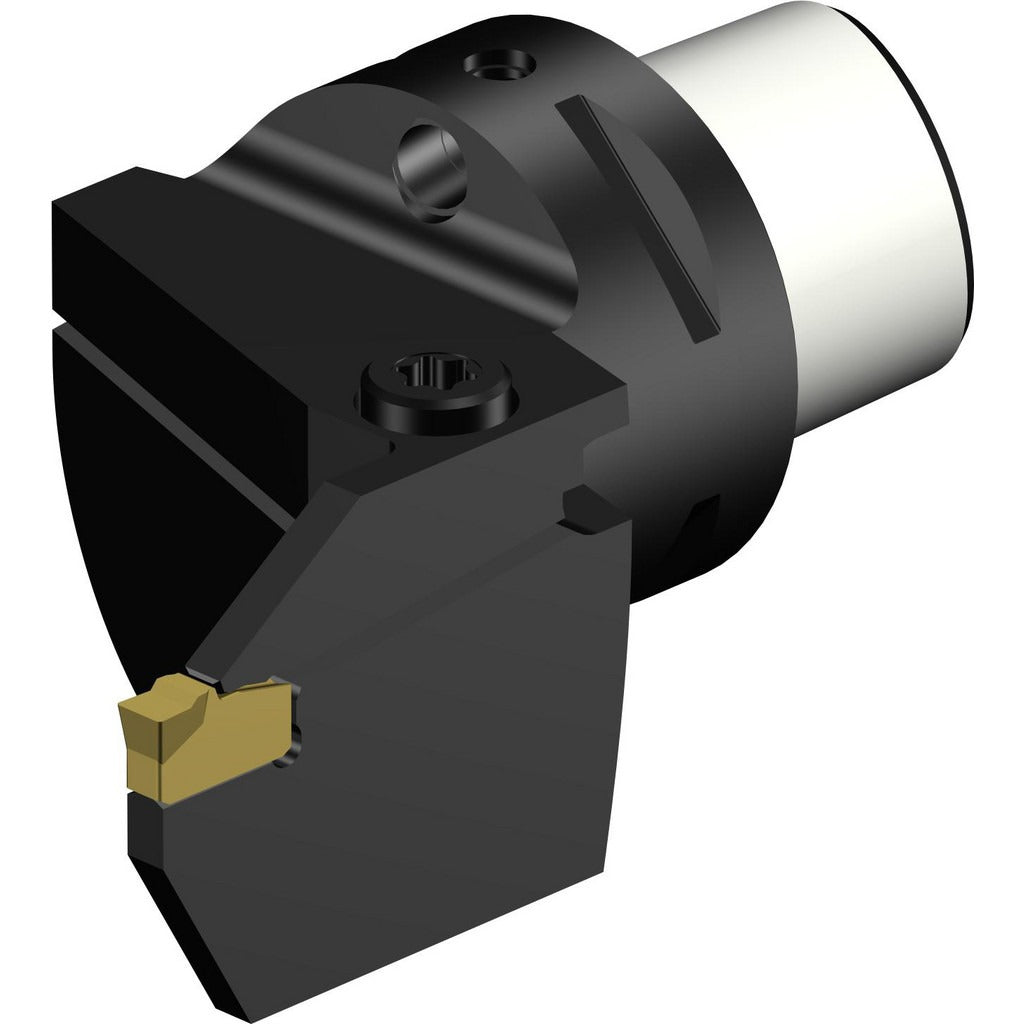

The SANDVIK COROMANT 5728341 is a modular grooving head designed for the T-Max Q-Cut series, configured for right-hand cutting with a blade holder head style and C4 system size interface. This head accepts N151.2-400-5E inserts and features through-coolant capability to extend tool life and manage chip evacuation during grooving operations. With a head length projection of 2.638 inches (67.00 mm) and a center-to-cutting-edge distance of 1.063 inches (27.00 mm), it is built for precise, repeatable grooving on CNC lathes and turning centers. Licensed machinists and CNC operators install this head as part of a modular tooling setup.

This grooving head is suited for external grooving operations on CNC turning centers in production machining environments, both job shop and high-volume manufacturing. It supports groove widths up to 0.9843 inches (25.00 mm) with a maximum depth of cut of 0.2362 inches (6.00 mm). The modular C4 interface allows the head to be mounted on compatible T-Max Q-Cut shanks and tooling blocks, enabling quick head changes without disturbing the machine setup. Through-coolant delivery keeps the insert tip cool and assists chip control during deep or interrupted grooving passes.

Key Features

• Right-hand cutting direction for standard CNC lathe grooving operations
• Blade holder head style with C4 modular interface for secure, repeatable mounting
• Through-coolant capability for improved insert life and chip evacuation
• Head length projection of 2.638 inches (67.00 mm) with 1.063-inch (27.00 mm) center-to-cutting-edge reach
• Compatible with N151.2-400-5E insert style for defined groove width range
• Maximum groove width of 0.9843 inches (25.00 mm) and maximum depth of cut of 0.2362 inches (6.00 mm)

Compatibility

Designed for use with the SANDVIK COROMANT T-Max Q-Cut series modular tooling system, C4 system size. Compatible insert style is N151.2-400-5E. Blade style compatibility designation is 40.

Installation Notes

Installation is performed by a qualified CNC machinist or tooling technician. Ensure the machine spindle is fully stopped and the turret is in a safe index position before mounting or removing the modular head. Use the appropriate torque wrench and interface hardware specified for the C4 modular connection. Verify through-coolant port alignment and confirm insert seating before running the first pass.
