Sandvik Coromant 5727520 Modular Turning Profiling Head

Product Description

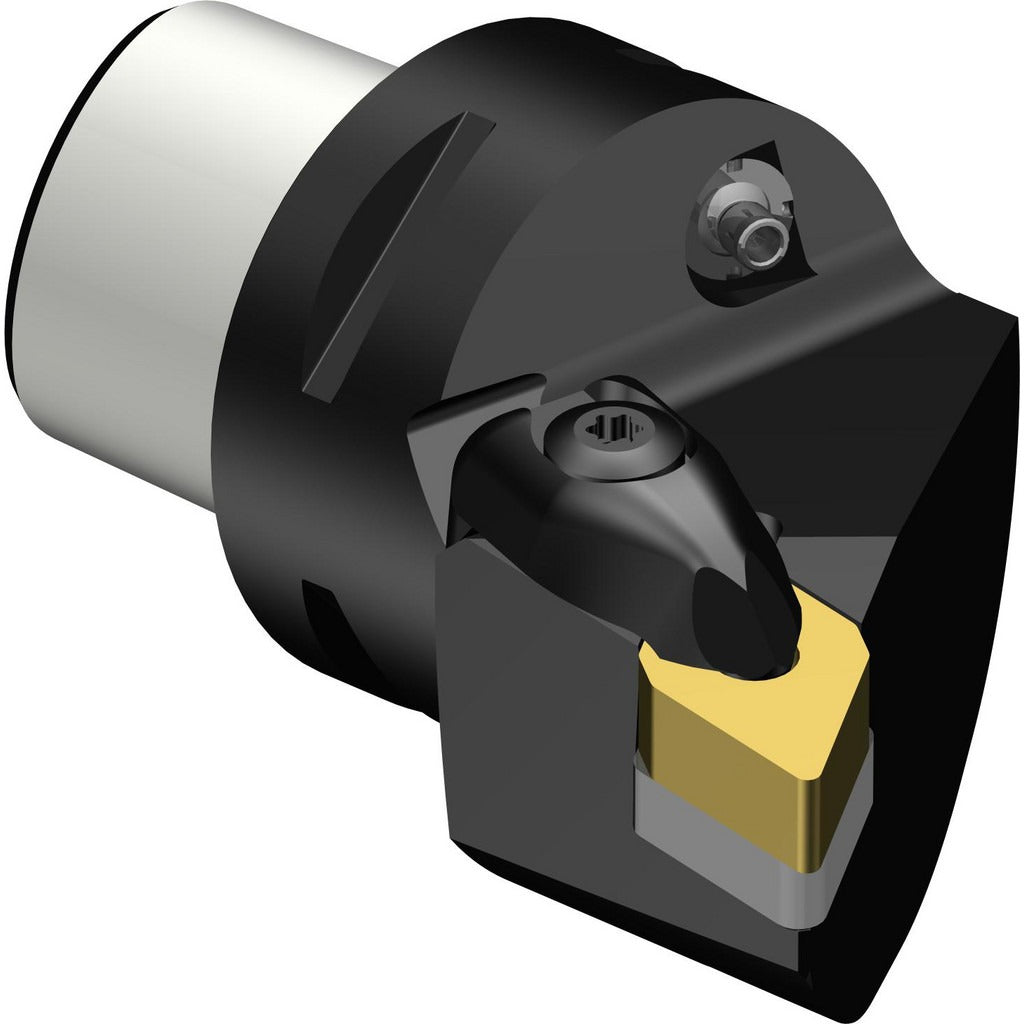

The SANDVIK COROMANT 5727520 is a modular turning profiling head designed for use in T-Max P series modular tooling systems. Built for both internal and external profiling operations, this left-hand cutting head features a Size C4 system with a C5 head connection and a 55 mm head length projection. The wedge-style insert holding method provides secure clamping for DNMG 150608 inserts, supporting consistent performance under demanding turning conditions. Through-coolant capability directs cutting fluid directly to the cutting zone, helping manage heat and chip evacuation during deep-reach or high-feed operations. This head weighs 0.96 pounds and is intended for installation by qualified machinists and tooling specialists.

This profiling head is suited for CNC turning centers and machining applications requiring extended reach or modular tooling flexibility. The 40 mm neck diameter and 55 mm head length make it appropriate for operations with a minimum hole diameter of 110 mm and a maximum hole depth of 55 mm. The left-hand cutting direction supports specific spindle orientations and part configurations common in production turning environments. Through-coolant compatibility makes this head a practical choice for applications where chip control and thermal management are priorities.

Key Features

• Left-hand cutting direction with wedge-style insert clamping for DNMG 150608 inserts
• Through-coolant (Coolant Through: Yes) for improved chip evacuation and heat control
• Size C4 system with C5 head connection for T-Max P modular tooling compatibility
• 55 mm head length projection supports deep-reach turning and profiling operations
• Axial rake angle of -6 degrees and radial rake angle of -7 degrees for controlled cutting geometry
• Neck diameter of 40 mm with a minimum hole diameter of 110 mm

Compatibility

Designed for use in SANDVIK COROMANT T-Max P modular tooling systems with a C4 system size and C5 head connection. Compatible insert style is DNMG 150608.

Installation Notes

Installation should be performed by a qualified machinist familiar with modular turning tooling systems. Ensure the machine spindle is fully stopped and all energy sources are locked out before mounting or removing the profiling head. Verify that the head connection interface is clean and free of chips or debris before assembly, and confirm coolant-through passages are clear and properly aligned with the machine coolant supply. Consult the machine tool and tooling system documentation for torque and assembly procedures specific to the C4/C5 modular interface.
