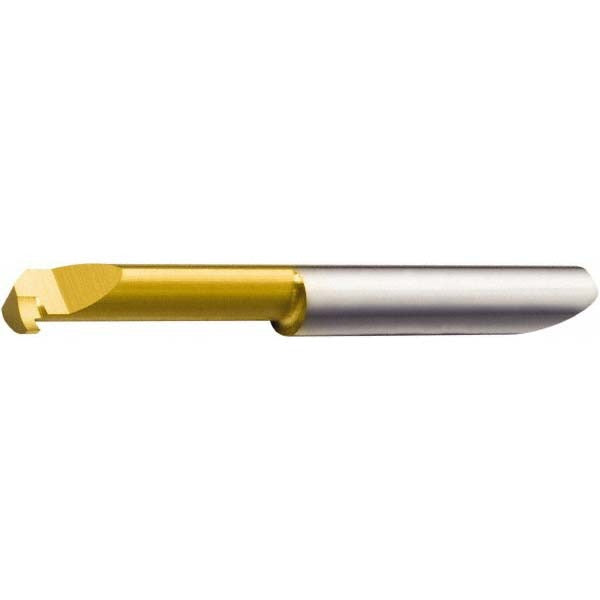

Sandvik Coromant 5726814 Solid Carbide Grooving Tool

Product Description

The SANDVIK COROMANT 5726814 is a solid carbide internal grooving tool designed for precision grooving operations in bores and holes. Built from solid carbide for rigidity and wear resistance, this tool delivers consistent groove geometry in demanding machining environments. It features a 7.00 mm shank diameter, a 1.57 mm groove width, and an overall length of 50.28 mm (approximately 1.98 inches). The 0.04 mm corner radius supports clean groove profiles. Machinists and CNC operators working in metalworking, toolroom, and production environments will find this tool suited for tight-tolerance internal grooving work where dimensional accuracy is critical.

This grooving tool is intended for internal grooving applications where the bore diameter is at or above the minimum hole diameter of 7.20 mm (approximately 0.2835 inches). It accommodates a maximum hole depth of 28.00 mm (approximately 1.10 inches) and offers a projection of 28.00 mm to reach groove locations within confined bore geometries. Typical applications include grooving for snap rings, O-ring seats, and retaining features in precision-machined components. It is packaged and sold as a single unit and is suited for use in CNC turning centers and manual lathes equipped with appropriate tool holders.

Key Features

• Solid carbide construction for rigidity and long tool life in abrasive materials
• 1.57 mm groove width for consistent, repeatable groove profiles
• 7.00 mm shank diameter with 25.00 mm shank length (approximately 0.98 inches)
• 28.00 mm maximum hole depth and 28.00 mm projection for reach into deep bores
• Minimum bore entry diameter of 7.20 mm (0.2835 inches) for confined-bore applications
• 0.04 mm corner radius for clean groove transitions

Compatibility

Designed for use in toolholding systems that accept a 7.00 mm round shank. Consult SANDVIK COROMANT toolholder documentation to confirm compatible boring bar or cartridge systems before installation.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the CNC program is locked out before inserting or removing the tool from the holder. Verify shank clamping torque per the toolholder manufacturer specifications. Confirm bore entry diameter and hole depth against tool projection and shank length before running the first pass to avoid tool or workpiece damage.
