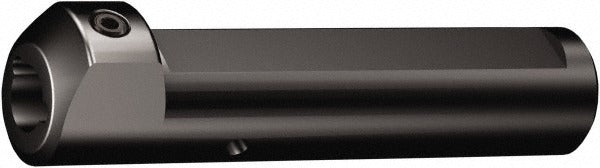

Sandvik Coromant 5726562 Modular Tool Holding Adapter

Product Description

The SANDVIK COROMANT 5726562 is a modular tool holding system adapter designed for precision machining applications. It features a 2.9528-inch projection and a 0.6299-inch body diameter, with an overall length of 2.9528 inches. The adapter includes through-coolant capability, directing coolant fluid directly to the cutting zone to manage heat and extend tool life. This component is installed by machinists and tooling technicians working with modular tooling systems in CNC turning, milling, or boring operations. It is sized to Modular System Size 16 and 6 interface specifications, making it a precise fit within compatible modular tooling assemblies.

This adapter is suited for use in production machining environments where modular tooling flexibility is required. It fits into setups where quick tool changes and repeatable projection lengths are critical to maintaining consistent part tolerances. The through-coolant feature makes it particularly useful in operations involving deep-reach cutting, difficult-to-machine materials, or high-speed applications where chip evacuation and thermal control are priorities. Installation is performed by qualified tooling technicians on CNC machining centers.

Key Features

• 2.9528-inch projection for consistent reach in modular tooling setups
• 0.6299-inch body diameter compatible with Size 16 and 6 modular system interfaces
• Through-coolant capability directs fluid to the cutting zone for improved thermal management
• Overall length of 2.9528 inches supports precise tool positioning
• Compact form factor weighing 0.27 pounds for reduced spindle load

Compatibility

Designed as an OEM-style component for modular tool holding systems with Size 16 and Size 6 interface specifications, as indicated by the supplier data. Confirm interface compatibility with your specific tooling system before installation.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with modular tooling systems. Ensure the machine spindle is fully powered down and locked out before mounting or removing the adapter. Verify that mating interfaces are clean and free of chips or debris prior to assembly to ensure accurate seating and repeatable projection. Confirm through-coolant port alignment with the machine tool coolant supply before operation.
