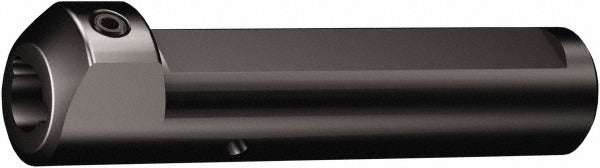

Sandvik Coromant 5726532 Boring Bar Modular Adapter

Product Description

The SANDVIK COROMANT 5726532 is a boring bar modular adapter designed for precision internal turning and boring operations. It features a 4.00 mm (0.1575 inch) bore diameter and a 14.00 mm (0.5512 inch) bore depth, making it suited for small-bore machining work where accurate tool positioning is critical. The adapter uses a screw thread lock mechanism to secure the boring bar insert, and an internal coolant channel delivers cutting fluid directly to the tool tip to manage heat and chip evacuation. Licensed machinists and CNC tooling technicians install this adapter as part of a modular tooling setup.

This adapter is intended for use in modular boring bar systems where a standardized connection interface is required. The 22 mm body diameter and 110.00 mm (4.3307 inch) body length suit compact toolholding configurations on CNC lathes and machining centers handling small-diameter internal features. Internal coolant support makes it appropriate for production environments where thermal management and tool life are priorities. The lock screw interface is compatible with lock screw part number 5763221, and the adapter carries the manufacturer part number CXS-A22-04.

Key Features

• 4.00 mm (0.1575 inch) bore diameter for small-bore internal turning applications
• 14.00 mm (0.5512 inch) bore depth for controlled insert positioning
• Internal coolant channel routes cutting fluid directly to the cutting zone
• Screw thread lock mechanism secures boring bar insert under cutting loads
• 22 mm connection size and 110.00 mm body length suit compact modular toolholding setups
• Compatible with lock screw part number 5763221

Compatibility

This modular adapter is compatible with lock screw part number 5763221 and carries the manufacturer designation CXS-A22-04. It is designed for use in SANDVIK COROMANT modular boring bar systems with a 22 mm connection size.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the machine is in a safe, locked-out state before handling or swapping modular tooling components. Verify the connection interface is clean and free of debris before seating the adapter, and torque the lock screw per the tooling system manufacturer's documented procedure. Confirm internal coolant passages are clear and properly aligned before resuming cutting operations.
