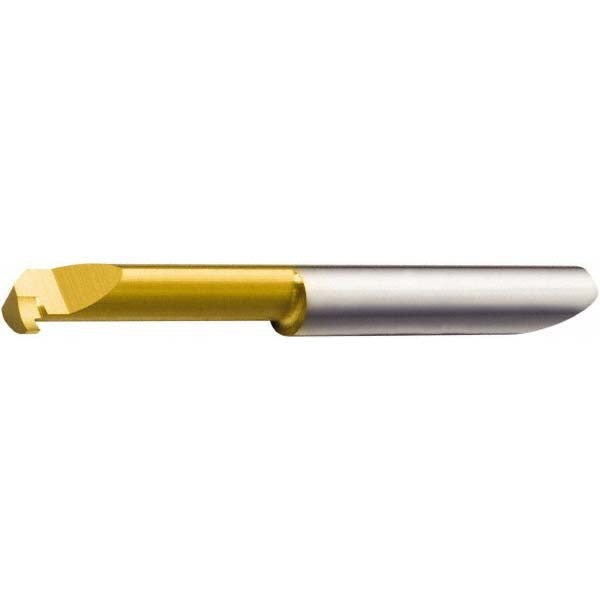

Sandvik Coromant 5726409 Solid Carbide Grooving Tool

Product Description

The SANDVIK COROMANT 5726409 is a solid carbide internal grooving tool designed for precision groove cutting in bore and hole applications. Built from solid carbide, it delivers the rigidity and wear resistance needed for consistent groove geometry in production environments. The tool features a 6 mm shank diameter, a 1 mm groove width, and an overall length of 34.85 mm (approximately 1.37 inches), making it well suited for small-bore internal grooving work. Machinists and tooling professionals specify this tool where tight dimensional tolerances and surface finish quality are required in internal groove operations.

This grooving tool is intended for internal grooving in bores with a minimum hole diameter of 6.20 mm (approximately 0.244 inches). It is rated for a maximum hole depth of 10 mm (approximately 0.394 inches) with a projection of 1.80 mm (approximately 0.071 inches). Typical applications include snap ring grooves, O-ring grooves, and other internal groove profiles in precision machined components across metalworking and manufacturing environments. It is sold individually as a single-piece unit.

Key Features

• Solid carbide construction for rigidity and wear resistance in internal grooving
• 1 mm groove width for precise, narrow internal groove profiles
• 6 mm shank diameter compatible with standard small-bore toolholding systems
• Maximum hole depth of 10 mm (approximately 0.394 inches) suitable for shallow to moderate bore depths
• Minimum hole diameter of 6.20 mm (approximately 0.244 inches) for small-bore access
• Compact overall length of 34.85 mm (approximately 1.37 inches) for controlled overhang and reduced vibration

Compatibility

Designed as an OEM-style replacement for solid carbide internal grooving tool applications requiring a 6 mm shank diameter and 1 mm groove width.

Installation Notes

This tool is installed by a qualified machinist or tooling technician following standard toolholding procedures for solid carbide boring and grooving tools. Ensure the machine spindle is fully stopped and the tool is properly secured in the toolholder before beginning any operation. Follow the machine manufacturer and tooling guidelines for cutting parameters appropriate to the workpiece material. Inspect the cutting edge for chipping or wear before each use and replace the tool if damage is observed.
