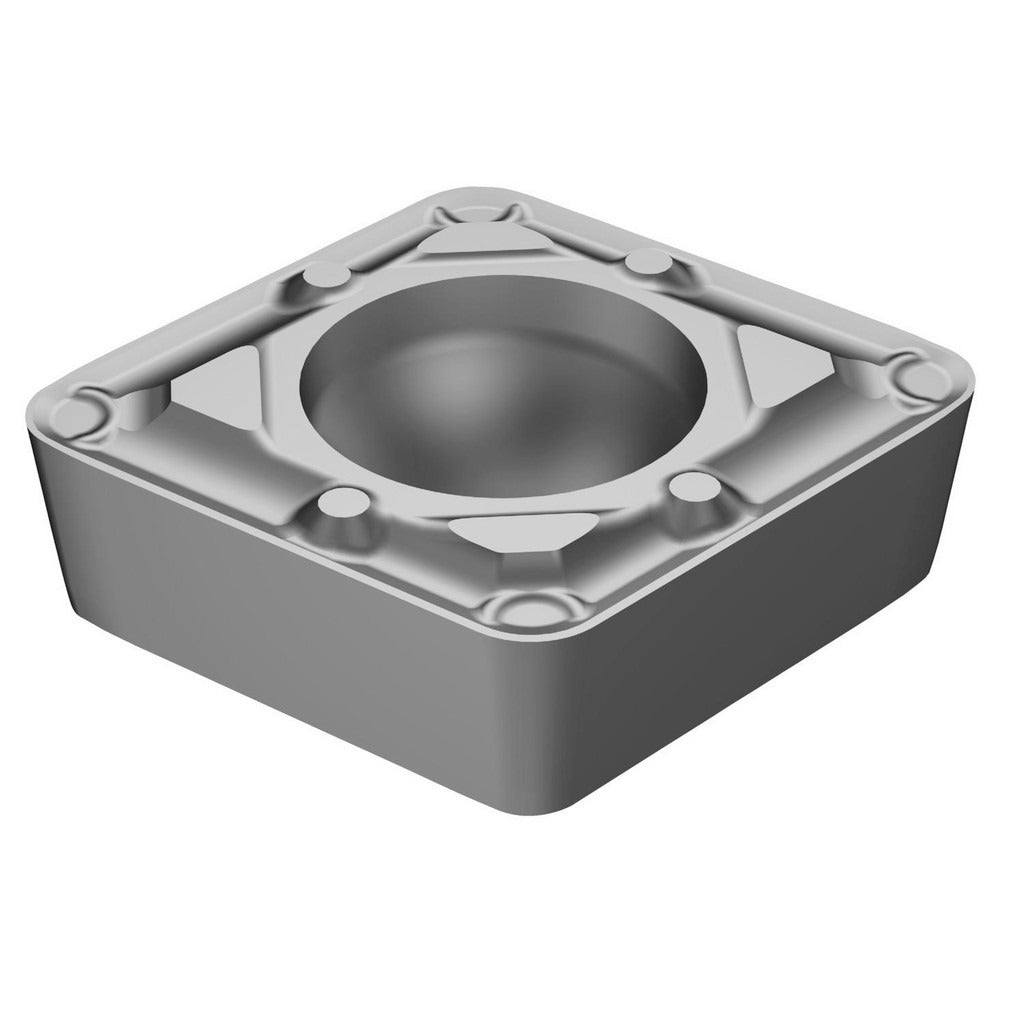

Sandvik Coromant 5724774 Turning Insert Ccmt 5015

Product Description

The SANDVIK COROMANT 5724774 is a solid carbide turning insert in the CCMT style, designed for precision external turning operations on CNC and manual lathes. Part of the CoroTurn 107 series, this insert carries grade 5015 uncoated carbide and features an 80-degree diamond shape with a 7-degree relief angle. The inscribed circle measures 3/8 inches (0.3750 inches decimal) and the corner radius is 1/64 inches (0.0156 inches decimal). With a wiper edge geometry and WF chip breaker, it is suited for finishing and semi-finishing passes where surface finish and chip control are critical priorities. The insert is neutral-hand and held by screw clamping.

This insert is intended for turning steel and cast iron workpieces in production machining environments. The WF chip breaker geometry supports light to medium depth-of-cut finishing applications in ISO material groups P (steel) and K (cast iron). It is commonly installed by machinists and CNC programmers on toolholders designed for the CCMT insert style with screw-lock clamping. The ISO code for this insert is CCMT 09 T3 04-WF 5015. Each package contains one insert and the minimum order quantity is 10 units.

Key Features

• Grade 5015 uncoated solid carbide for steel and cast iron turning
• 80-degree diamond insert shape with 7-degree relief angle for positive cutting action
• WF chip breaker geometry optimized for finishing and semi-finishing cuts
• Wiper edge for improved surface finish in light-feed applications
• Neutral-hand orientation compatible with standard CCMT screw-lock toolholders
• Two cutting edges per insert for extended tool economy

Compatibility

Designed for use with CCMT-style screw-lock toolholders in the CoroTurn 107 series. Compatible with toolholders accepting a 3/8-inch inscribed circle CCMT insert. Suitable for ISO material groups P (steel) and K (cast iron) turning applications.

Installation Notes

Installation is performed by qualified machinists using the appropriate Torx or hex key for the clamping screw on the toolholder. Power down and lock out the machine spindle before seating or indexing the insert. Ensure the insert pocket is clean and free of chips or debris before clamping to prevent insert rocking and premature edge failure. Follow the toolholder manufacturer's seating procedure to achieve proper insert contact.
