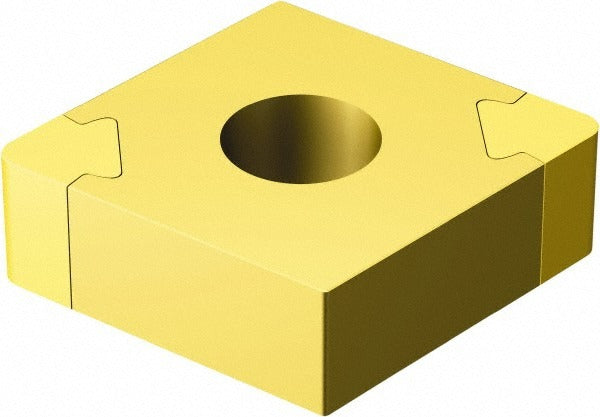

Sandvik Coromant 5724613 Turning Insert CNGA322S0330A 7015

Product Description

The SANDVIK COROMANT 5724613 is a solid carbide turning insert in the CNGA style, grade 7015, with a Titanium Nitride (TiN) coating. It features an 80-degree diamond shape (Insert Shape Code C), a clearance angle of 0 degrees (Clearance Code N), and a Tolerance Code G for precise dimensional control. The inscribed circle measures 3/8 inches (0.3750 inches), the corner radius is 1/32 inches (0.0313 inches), and the insert thickness is 1/8 inches (0.1250 inches). The insert length is 0.0945 inches. This insert is designed for turning operations and is installed by machinists and CNC turning professionals in production and job-shop environments.

This insert is suited for turning applications where a hard TiN-coated carbide grade is required. The CNGA style with chip breaker designation A supports controlled chip formation during standard and finish turning. The 80-degree diamond geometry provides a strong cutting edge suitable for longitudinal turning and facing operations. The insert is held by clamp and pin methods, making it compatible with standard CNGA-style turning toolholders used in both manual and CNC lathes across light to medium machining applications.

Key Features

• Grade 7015 solid carbide with Titanium Nitride (TiN) coating for wear resistance
• 80-degree diamond insert shape (Shape Code C) for strong, versatile cutting geometry
• Inscribed circle of 3/8 inches (0.3750 inches) with 1/32 inches corner radius
• Insert thickness of 1/8 inches; insert length of 0.0945 inches
• Chip breaker style A for controlled chip formation during turning
• Clamp and pin holding method compatible with standard CNGA toolholders
• ISO code CNGA090308S01030A 7015 for cross-reference identification

Compatibility

Designed as a replacement-style CNGA turning insert compatible with standard CNGA-style toolholders that accept clamp and pin insert holding. ISO designation CNGA090308S01030A 7015 may be used for cross-reference with equivalent holders and insert seats.

Installation Notes

Installation is performed by qualified machinists or CNC lathe operators. Power down and lock out the machine before indexing or replacing the insert. Use appropriate insert clamp torque per the toolholder manufacturer specifications. Inspect the insert seat and clamp components for wear or debris before seating the new insert to ensure proper clamping and dimensional accuracy.
