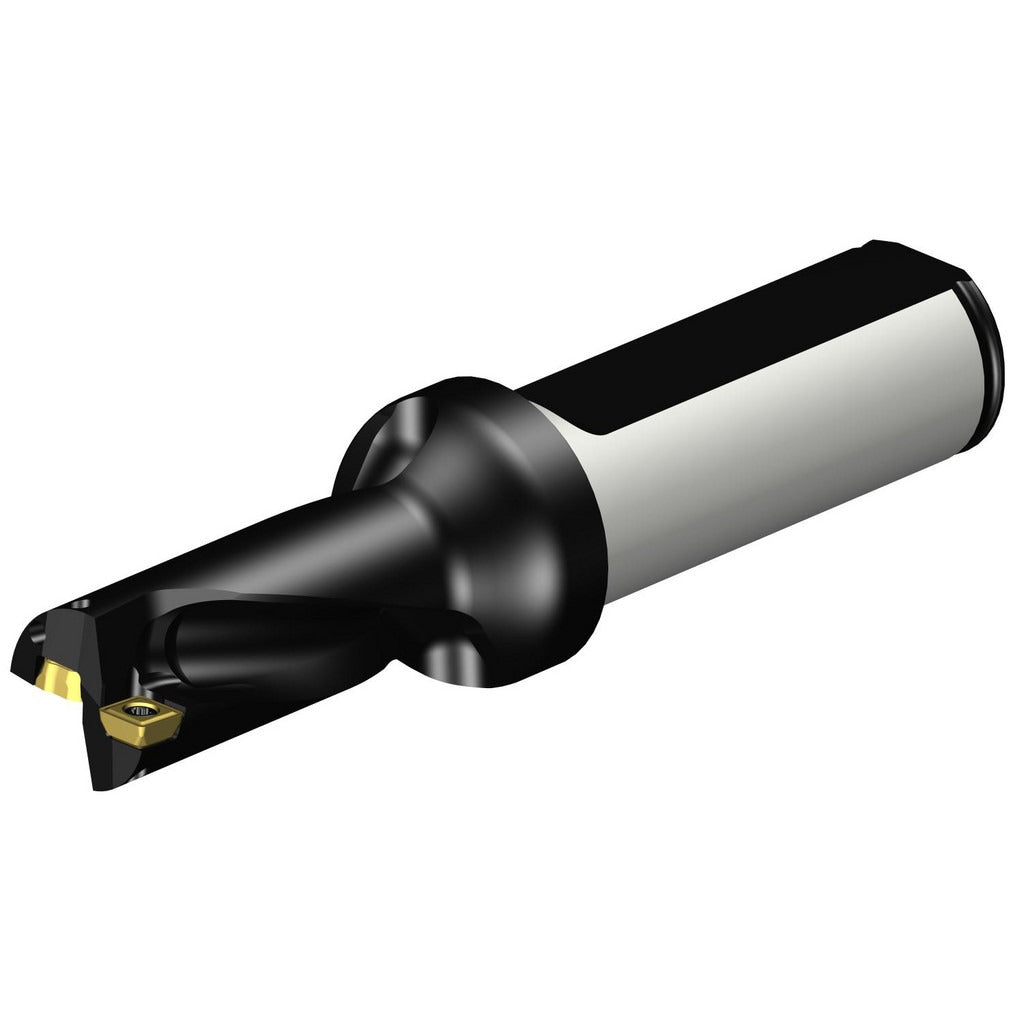

Sandvik Coromant 5724473 Indexable Insert Drill 5/8 in

Product Description

The SANDVIK COROMANT 5724473 is a 2xD indexable insert drill designed for precision hole-making in metal fabrication and machining applications. Built on the CoroDrill 880 platform, this straight-shank drill accepts two indexable inserts and delivers a maximum drill diameter of 0.6455 inches (15.88 mm) with a maximum drill depth of 1.375 inches. The tool body is constructed from steel and features integrated coolant-through capability, which promotes chip evacuation and extends insert life during high-feed drilling operations. Right-hand cutting direction is standard. This drill is intended for use by machining professionals and tool-room technicians working with CNC machining centers and drilling fixtures.

This indexable insert drill is suited for production drilling in ferrous and non-ferrous materials where consistent hole quality and repeatable depth control are required. The 2xD depth-to-diameter ratio makes it appropriate for general-purpose drilling cycles in medium-duty machining environments. The straight cylindrical shank measures 0.75 inches in diameter and 1.9685 inches in length, making it compatible with standard drill chucks and hydraulic toolholders commonly found on vertical and horizontal machining centers.

Key Features

• CoroDrill 880 platform with 2xD depth-to-diameter ratio for controlled drilling cycles
• Accepts two indexable inserts, reducing regrinding downtime compared to solid drills
• Coolant-through design promotes chip evacuation and improves insert life
• Straight cylindrical shank at 0.75 inches diameter for broad toolholder compatibility
• Right-hand cutting direction; steel tool body for rigidity and durability
• Flute length of 1.7343 inches (44.05 mm) provides adequate chip clearance

Compatibility

Designed for use with Compatible Drill Style A880..LXxx-02 indexable inserts. Verify insert size of 0.0945 inches (2.40 mm) before ordering replacement cutting edges. No additional model-specific compatibility data was provided in the product source.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the tool changer or spindle is locked out before mounting or removing the drill. Confirm the shank is fully seated and properly torqued in the toolholder per the toolholder manufacturer specifications. Verify coolant-through supply pressure and flow at the machine before initiating a drilling cycle to protect insert life.
