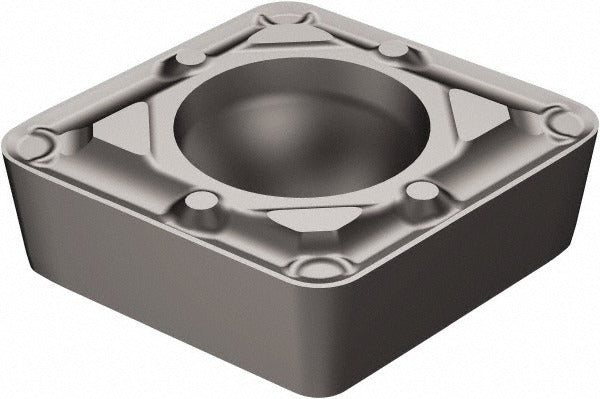

Sandvik Coromant 5724472 Turning Insert CCMT32.52-WF 5015

Product Description

The SANDVIK COROMANT 5724472 is a solid carbide turning insert designed for precision lathe and CNC turning operations. Carrying the ISO designation CCMT 09 T3 08-WF 5015, this insert features an 80-degree diamond shape (shape code C) with a 7-degree relief angle and a WF chip breaker geometry. The inscribed circle measures 3/8 inch (0.3750 inches), insert length is 0.3493 inches, and insert thickness is 5/32 inch (0.1563 inches). The bright/uncoated finish and grade 5015 carbide substrate make it well suited for applications where coating interference is a concern or where specific substrate properties are required. Holding is via screw (Torx or similar per toolholder spec), with a hole diameter of 0.1732 inches.

This insert is used in external and internal turning applications on CNC lathes and manual turning centers in both production and maintenance machining environments. The CCMT style, 80-degree diamond geometry, and WF chip breaker make it appropriate for finishing and semi-finishing cuts on a range of workpiece materials. The 1/32-inch (0.0313-inch) corner radius suits fine-tolerance surface finish requirements. Machinists, tool-and-die technicians, and CNC operators in metalworking shops are the primary installers and users of this insert.

Key Features

• 80-degree diamond insert shape (code C) with 7-degree relief angle for low cutting forces and precise edge engagement
• Grade 5015 solid carbide substrate, bright/uncoated finish for applications requiring an uncoated cutting edge
• WF chip breaker geometry optimized for finishing and light semi-finishing operations
• 1/32-inch (0.0313-inch) corner radius for tight-tolerance surface finishes
• Screw-holding method with 0.1732-inch hole diameter for secure, repeatable seating in compatible toolholders
• ISO code CCMT 09 T3 08-WF 5015 for straightforward cross-reference and toolholder matching

Compatibility

Designed for use in CCMT-style screw-on turning toolholders accepting a 3/8-inch inscribed circle, 80-degree diamond insert. Verify toolholder seat geometry, clearance code C, and tolerance code M compliance before installation. Consult SANDVIK COROMANT toolholder documentation for confirmed holder pairings using ISO code CCMT 09 T3 08-WF 5015.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Before swapping inserts, ensure the machine spindle is stopped, the axis is locked, and all guards are in place per shop safety protocols. Clean the insert pocket and seating surfaces before installing the new insert to ensure proper contact and runout. Do not exceed the clamping torque specified by the toolholder manufacturer for the screw-holding system.
