Sandvik Coromant 5724134 Turning Insert Ccmt 5015

Product Description

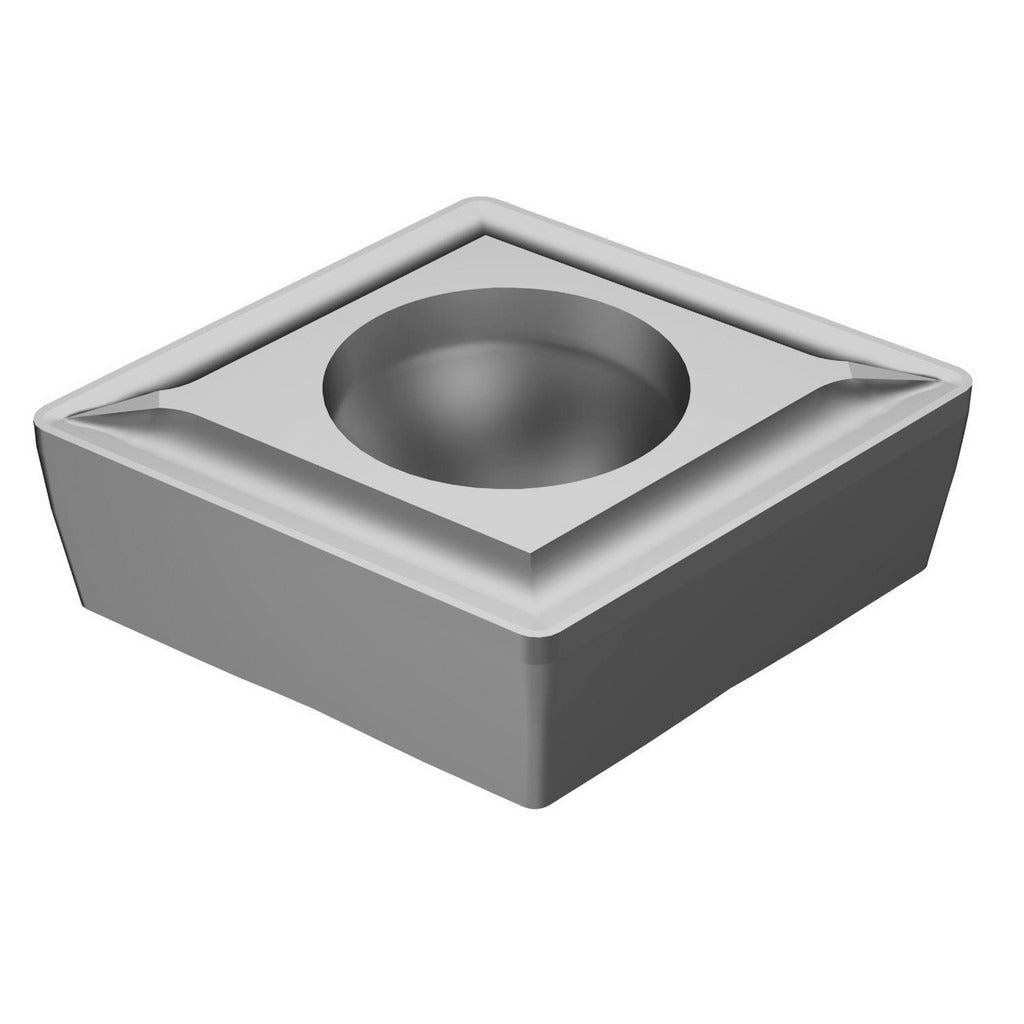

The SANDVIK COROMANT 5724134 is a solid carbide, uncoated turning insert designed for precision external turning operations on CNC lathes and turning centers. Carrying the ISO designation CCMT 09 T3 04-UF 5015 and belonging to the CoroTurn 107 series, this insert features an 80-degree diamond shape with a neutral hand orientation. The UF chip breaker geometry and 0.0156-inch corner radius make it well-suited for light finishing passes where tight surface finish tolerances are required. Screw-style clamping holds the insert securely in a CCMT-compatible toolholder during operation.

This insert is intended for turning steel and cast iron workpieces, covering primary material code P and secondary material code K applications. It is appropriate for finishing and semi-finishing passes in job shops, production machining environments, and toolroom applications where consistent dimensional control is needed. The CoroTurn 107 series is engineered around positive-rake, screw-on insert designs commonly used in both light production and precision turning work. Machinists and CNC operators working with ferrous materials will find the UF geometry particularly effective at low depths of cut and controlled feed rates.

Key Features

• 80-degree diamond insert shape (code C) for versatile turning access and strong cutting edge geometry
• UF chip breaker geometry optimized for finishing and semi-finishing on steel and cast iron
• Uncoated solid carbide grade 5015 for sharp, consistent edge performance
• Neutral hand orientation compatible with standard CCMT toolholders
• Screw-style insert holding for positive, repeatable seating and quick indexing
• Two cutting edges per insert for extended usable life per piece

Compatibility

Designed as a screw-on replacement turning insert for CCMT-style toolholders within the SANDVIK COROMANT CoroTurn 107 series. Compatible with toolholders accepting CCMT 09 T3 insert seats. Verify toolholder pocket geometry and screw size before installation.

Installation Notes

This insert is installed and indexed by a licensed machinist or CNC operator. Power down and lock out the machine spindle before changing inserts. Use the appropriate Torx or hex key to tighten the clamping screw to the toolholder manufacturer's specified procedure — do not overtighten, as this can fracture the carbide substrate. Inspect the insert pocket and seating surface for chips or debris before seating a new insert.
