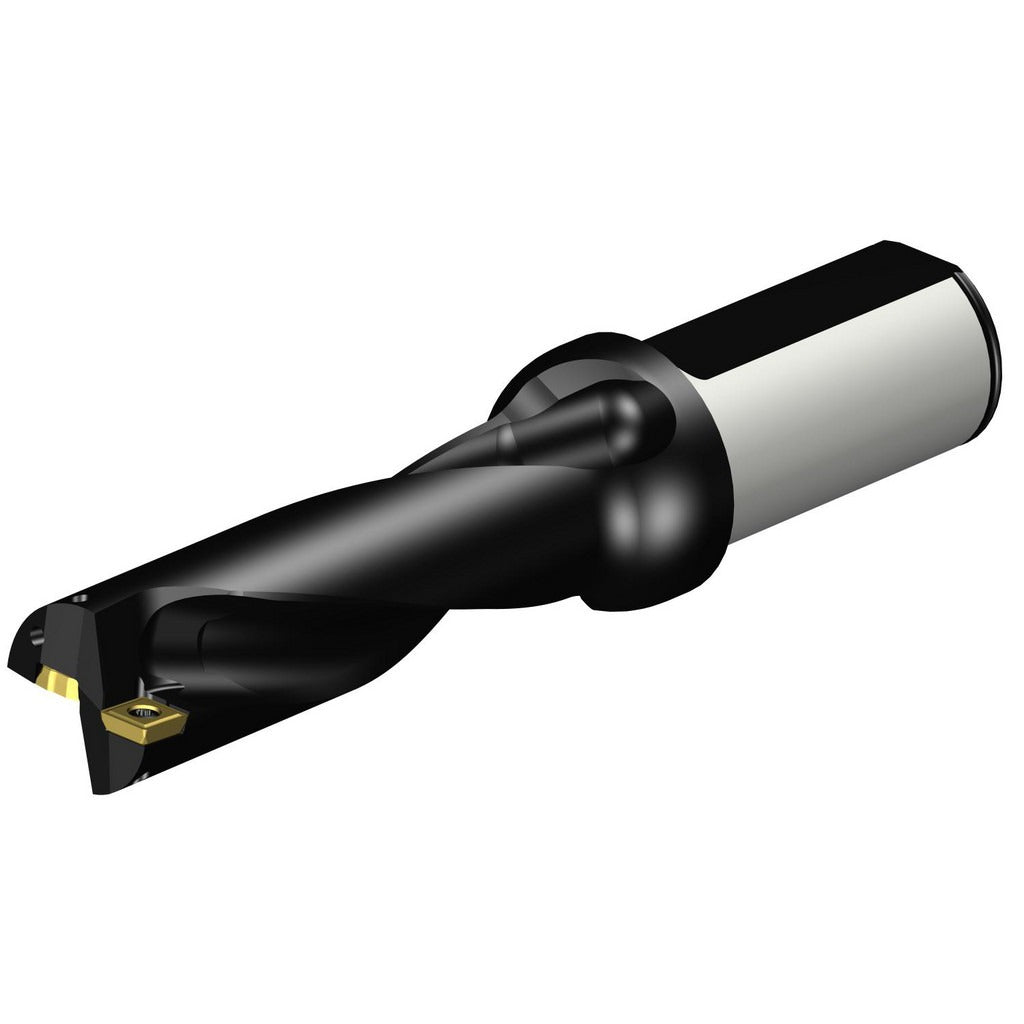

Sandvik Coromant 5723794 Indexable Insert Drill 3xd

Product Description

The SANDVIK COROMANT 5723794 is an indexable insert drill designed for high-productivity hole-making operations in metal cutting applications. Built on the CoroDrill 880 platform, this drill accepts two indexable inserts and delivers a maximum drill depth of 3.51 inches at a 3xD depth-to-diameter ratio. The body is constructed of steel and features a straight cylindrical shank for secure, repeatable tool holding. Coolant-through capability supports chip evacuation and tool life in demanding materials. This drill is installed and operated by machining professionals and toolroom technicians running CNC turning centers or machining centers.

This drill is suited for right-hand cutting in production environments where consistent hole quality and insert interchangeability reduce downtime. The 1-1/8 inch nominal diameter (1.1644 inches maximum drill diameter, 28.57 mm) covers a common bore size in both job-shop and high-volume production settings. The straight cylindrical shank at 1-1/4 inch diameter seats in standard hydraulic, shrink-fit, or set-screw tool holders. With a flute length of 4.2033 inches and a body length of 3.544 inches, the tool balances reach with rigidity for interrupted-cut and continuous-cut applications.

Key Features

• 3xD depth-to-diameter ratio with 3.51 inch maximum drill depth
• Accepts two indexable inserts compatible with drill style A880..LXxx-03
• Coolant-through design for improved chip evacuation and insert life
• Right-hand cutting direction for standard spindle rotation
• Steel body construction with 1-1/4 inch straight cylindrical shank
• Insert size 0.1181 inches (3.00 mm) for precise edge geometry control

Compatibility

Compatible with indexable inserts conforming to drill style A880..LXxx-03 with an insert size of 0.1181 inches (3.00 mm). Seats in tool holders accepting a 1-1/4 inch straight cylindrical shank.

Installation Notes

Installation and setup should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and locked out before mounting or removing the drill body or inserts. Verify tool holder clamping torque meets the machine tool manufacturer specifications before running. Confirm coolant-through passages are clear and coolant pressure is set per machine parameters before engaging the cut.
